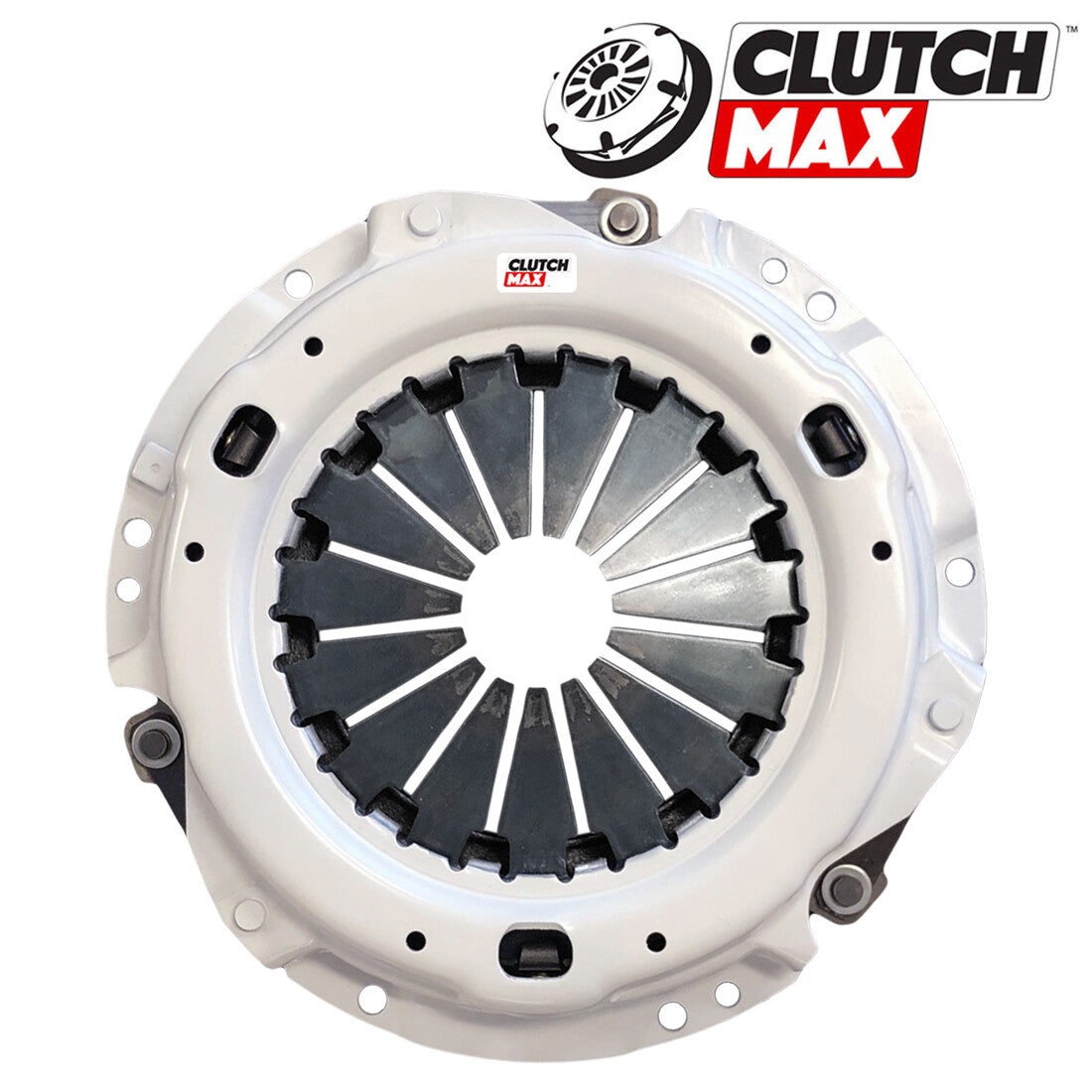

PERFORMANCE HD CLUTCH PRESSURE PLATE [CC98602]

ClutchMax® HD Performance Pressure Plate key features:

• Proprietary Single Diaphragm Design
• Reinforced cover stamping with higher gauge steel
• Four-Stage Heat Treated Diaphragm Spring
• 36 percent increase in clamp load
• Ductile Iron plate is 2X stronger than commonly used gray iron
• Higher grade drive straps and rivets
• CNC machine face castings
• Load tested
• Dynamically balanced within 0.25 oz

HP Rating and Torque Capacity when used with ClutchMax Stage 1 disc plate:  230 HP / 252 lb-ft

HP Rating and Torque Capacity when used with ClutchMax Stage 2 disc plate:  275 HP / 282 lb-ft

HP Rating and Torque Capacity when used with ClutchMax Stage 3 disc plate:  324 HP / 325 lb-ft

HP Rating and Torque Capacity when used with ClutchMax Stage 4 disc plate:  332 HP / 334 lb-ft

ClutchMax® differences:

• Feel:  Improved throttle response. Light to moderate pedal effort. Quick and positive engagement.
• Life:   Advanced design and carefully selected material provides extended life.
• Quality:  All products are designed, engineered, assembled, tested and inspected by ClutchMax® to ensure highest quality. Proudly made in the U.S.A.

VEHICLE APPLICATION

• Fits 1991 - 1995 Toyota Previa (2.4L DOHC 4cyl)
• Fits 1995 - 2000 Toyota Tacoma (2.4L DOHC 4cyl; fits 2WD and 4WD)
• Fits 2001 - 2004 Toyota Tacoma (2.4L DOHC 4cyl; fits 4WD only)
