ClutchMax is a subsidiary of Novus Automotive

ClutchMax Stage 4 Clutch Kit and Performance Chromoly Flywheel key features:

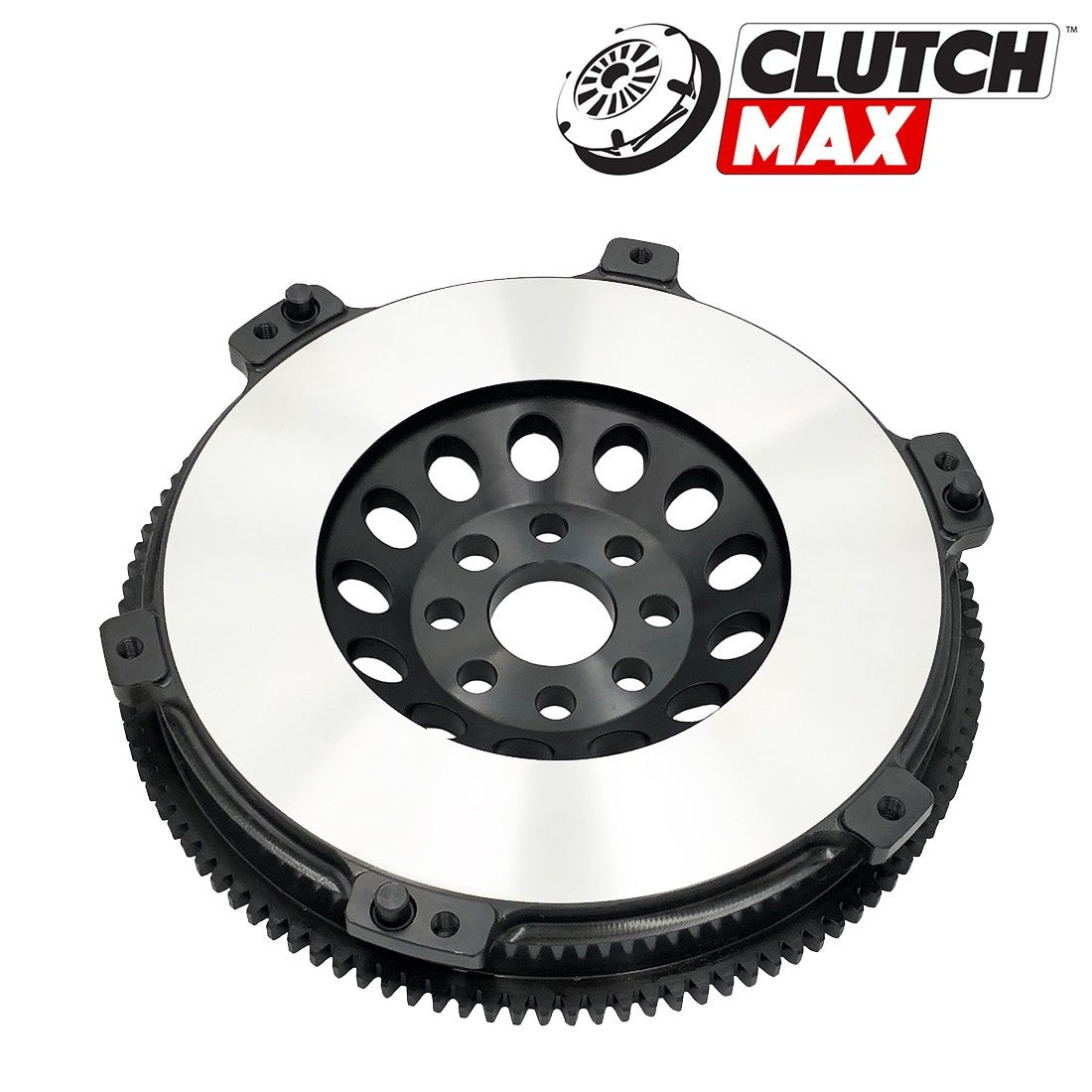

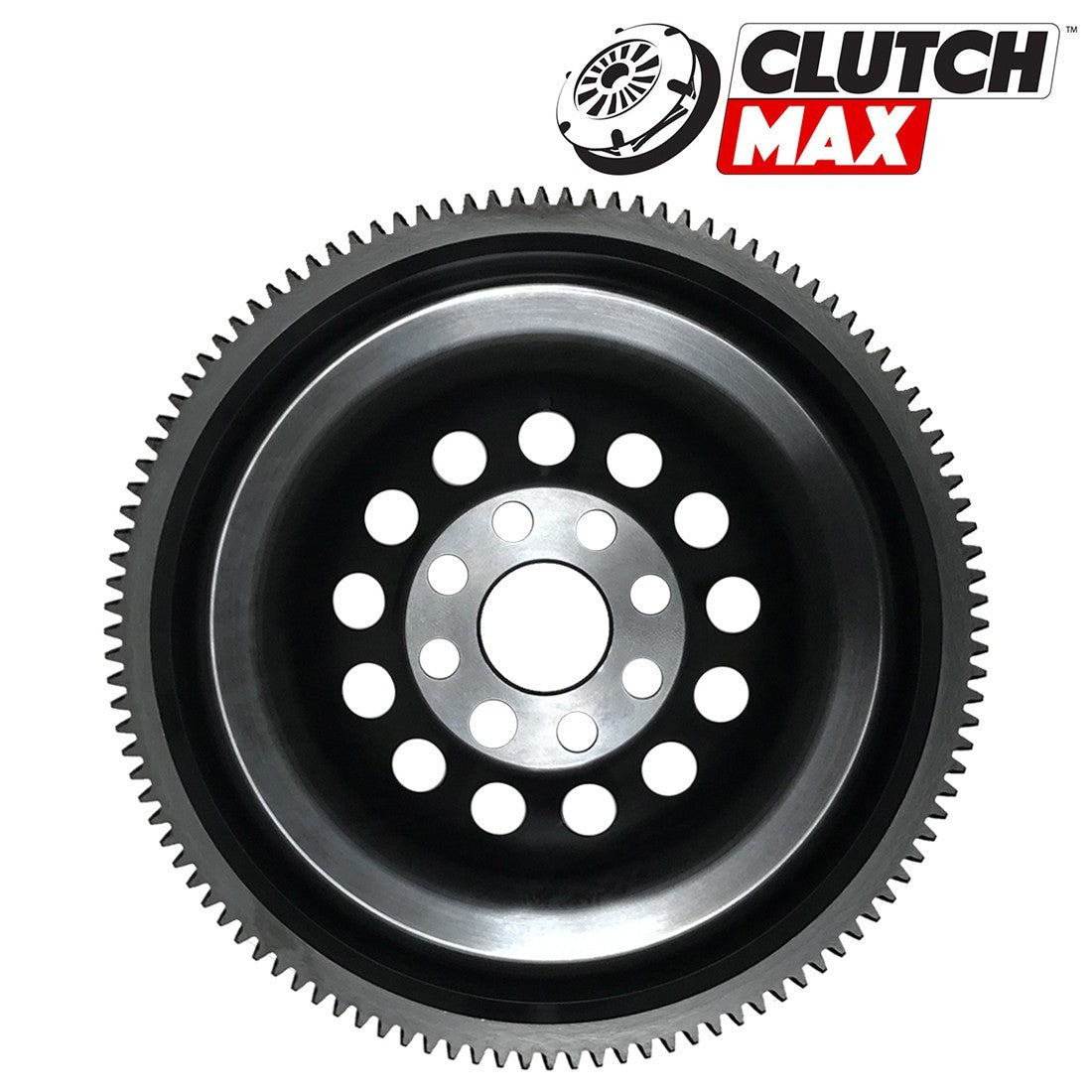

  • Performance chromoly flywheels are made from one piece solid 4140 chromoly forged steel, CNC machined and dynamically computer balanced to 15,000 RPM.

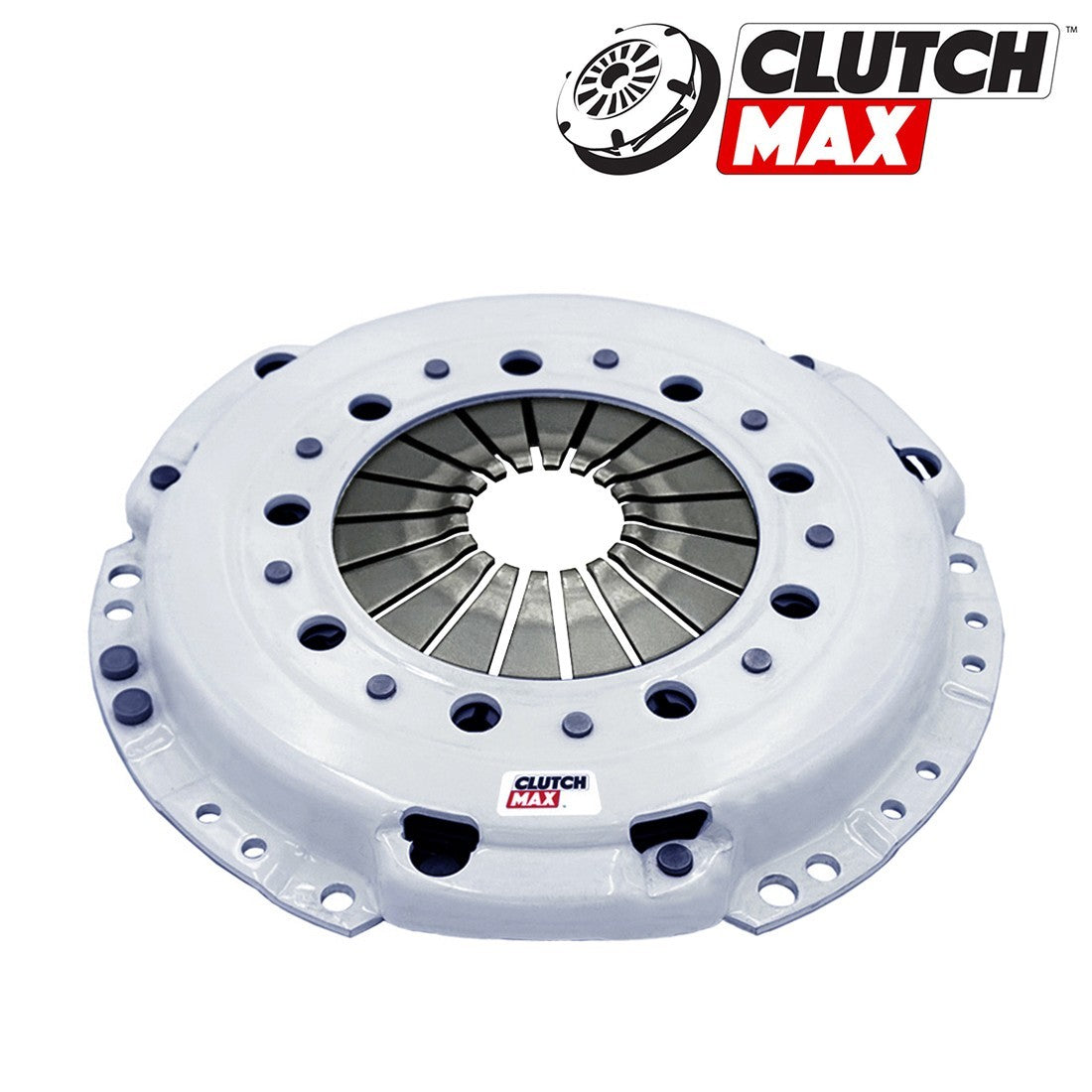

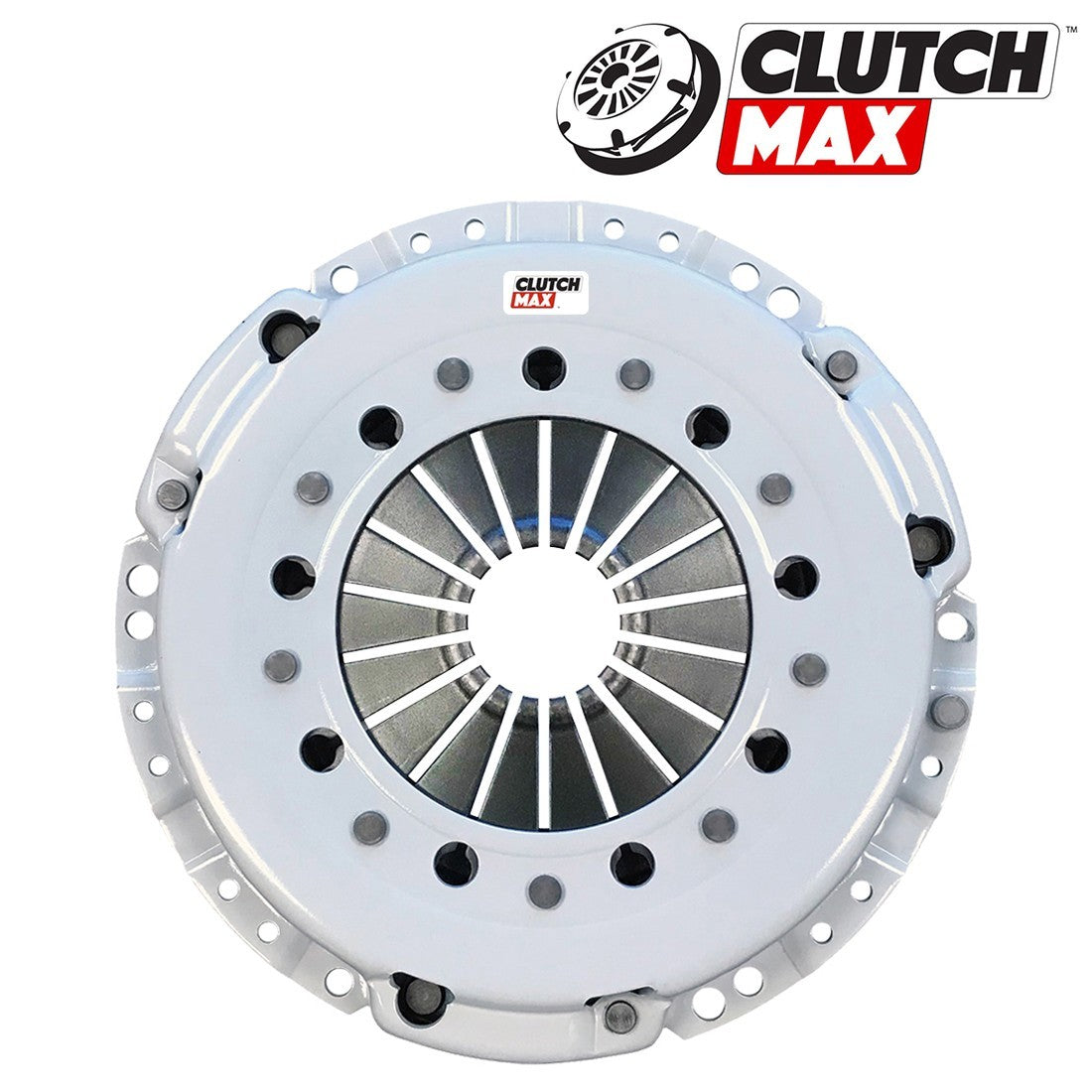

  • Pressure Plate made from Ductile/ Nodular Cast Iron for maximum strength and highest wear resistant.
  • Reinforced diaphragm springs made from 51CrV4 steel endure a multiple stage, heat-treating process for uncompromising performance and durability.

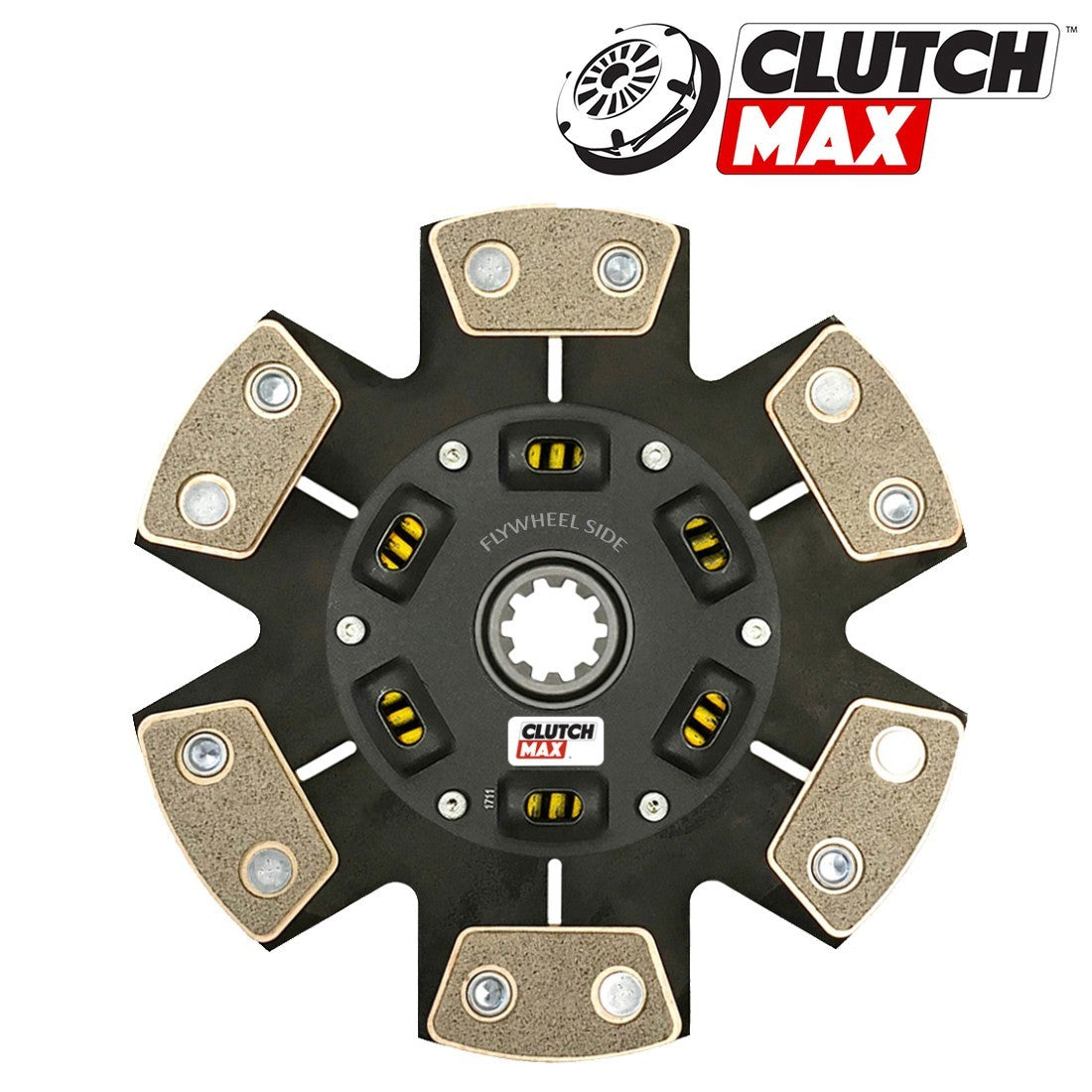

  • Disc made from copper ceramic (cerametallic) pads with precision broached sprung hub for ultimate holding power and maximum performance.
  • Properly track use, performance street driving and moderate daily use.


Torque Capacity:  440 lb-ft

Horsepower Rating:  498 HP

Recommended break-in period:  500 mile

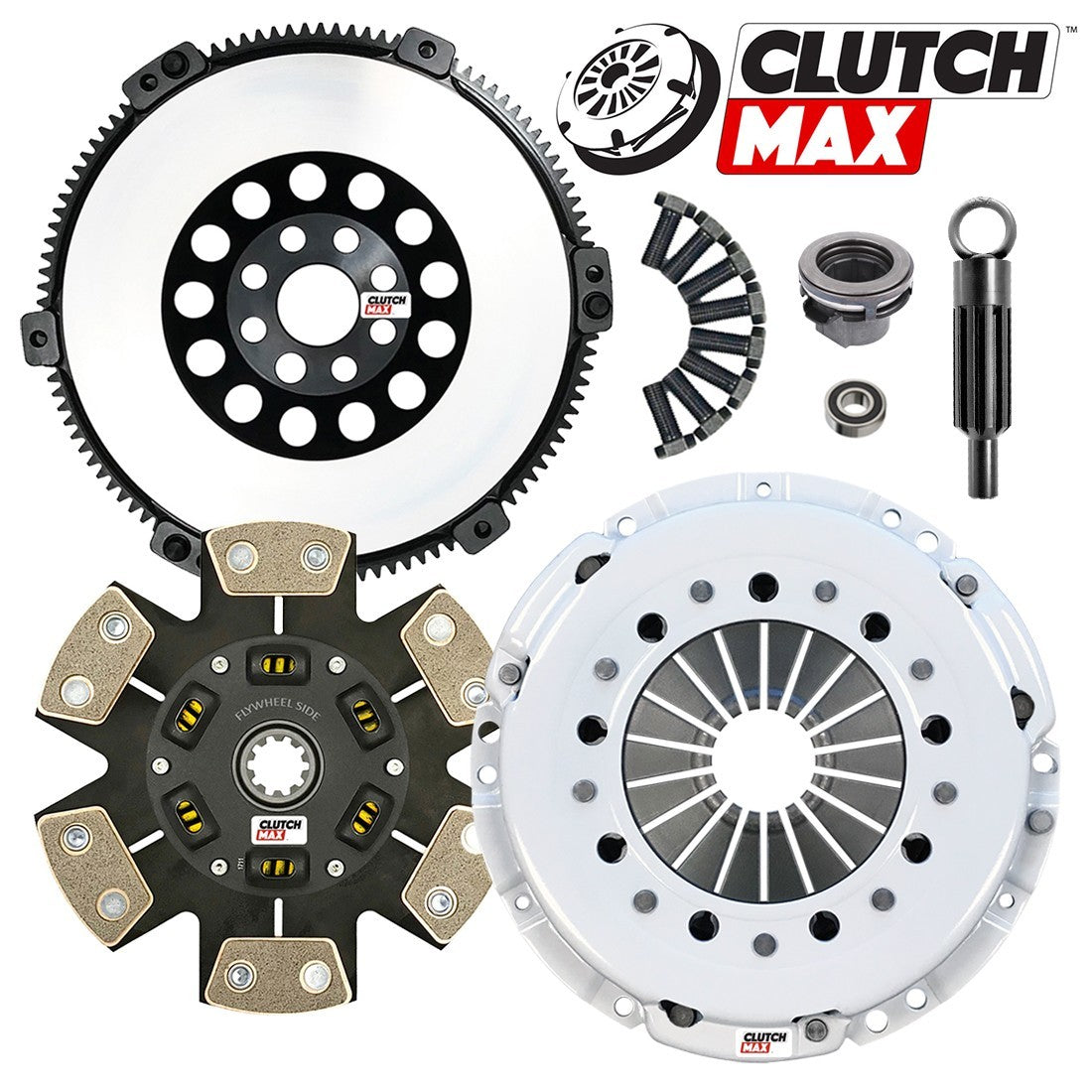

What's included in this complete bundle set:

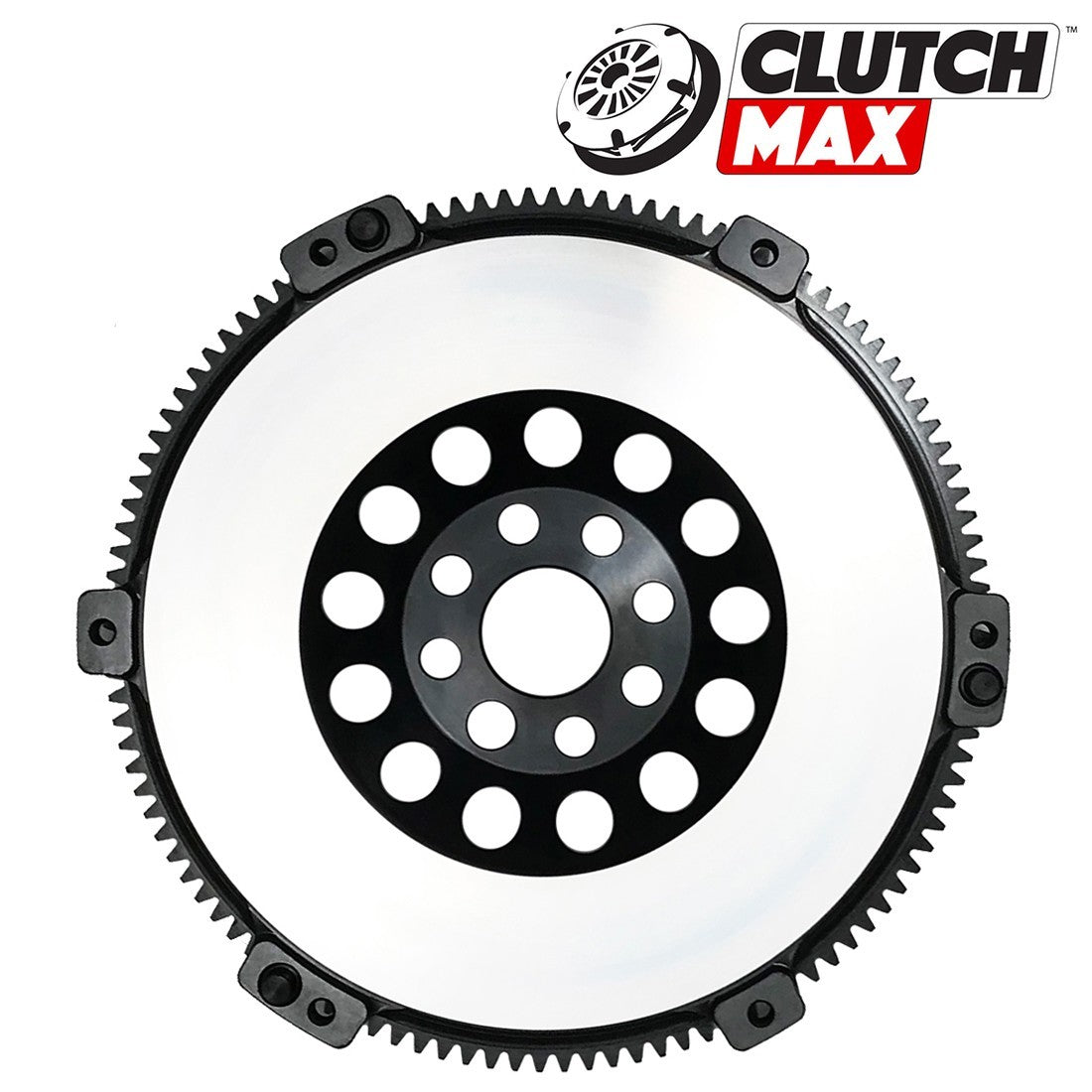

  • 1 each Performance Lightweight Chromoly Flywheel (Over 45% lighter than stock OEM dual mass flywheel)

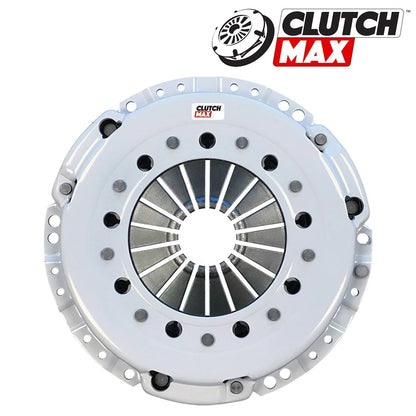

  • 1 each Performance HD Pressure Plate
  • 1 each Performance Stage 4 Ceramic 6-Puck Sprung Disc (9-7/16" (240 mm) x 1-1/8" (28.6 mm) x 10 spline)

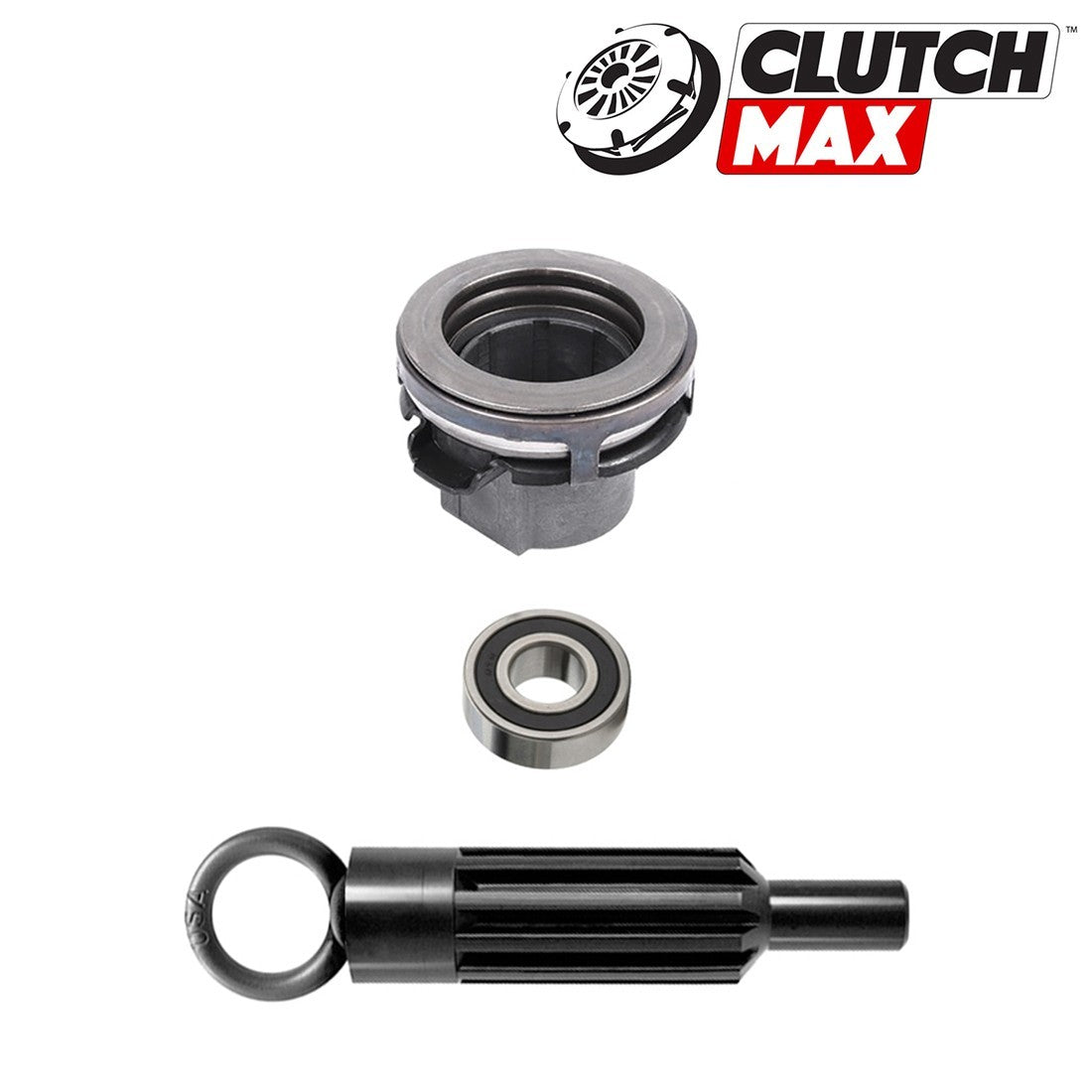

  • 1 each High-Temp HD Release Bearing
  • 1 each HD Pilot Bearing
  • 1 each Clutch Alignment Tool
  • Clutch Installation Guide


ClutchMax differences:

  • Feel:  Improved throttle response. Light to moderate pedal effort. Quick and direct positive engagement.
  • Life:   Advanced design and carefully selected material provides extended life.
  • Quality:  All products are designed, engineered, assembled, tested and inspected by ClutchMax to ensure highest quality. Proudly engineered and built in the U.S.A.

VEHICLE APPLICATION

  • Fits 1995 - 1999 BMW E36 M3 with S54 motor swap


Important Note: Vehicle must be equipped with gearbox from E36 M3 (5 or 6 speed)
