CLUTCHMAX STAGE 4 CLUTCH KIT & PERFORMANCE CHROMOLY FLYWHEEL BUNDLE SET [CM08117HDCLSF-ST4]

VEHICLE APPLICATION

• Fits 1989 - 1991 Honda Civic SiR EF9 (1.6L DOHC VTEC B16A1 with cable transmission)
• Fits 1989 - 1991 Honda CR-X SiR EF8 (1.6L DOHC VTEC B16A1 with cable transmission)

Note: Fits JDM model only. Does not fit U.S. model Civic and CRX

ClutchMax Stage 4 Clutch Kit and Performance Chromoly Flywheel set key features:

• Performance Chromoly Flywheels are made from 4140 Chromoly forged steel, CNC machined and dynamically computer balanced to 15,000 RPM.
• Pressure Plate made from Ductile/ Nodular Cast Iron for maximum strength and highest wear resistant.
• Diaphragm springs made from 51CrV4 steel (imported from Germany) endure a multiple stage, heat-treating process for uncompromising performance and durability.
• Disc made from sintered copper ceramic pads with chromoly sprung hub for ultimate holding power, maximum performance and extended life.
• Properly suited for track use, performance street driving and moderate daily use.

Torque Capacity:  298 lb-ft

Horsepower Rating:  334 HP

Recommended break-in period:  500 mile

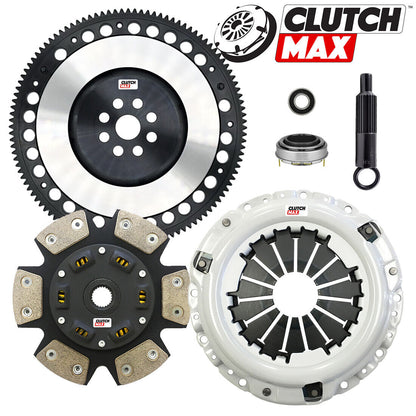

What's included in this complete bundle set:

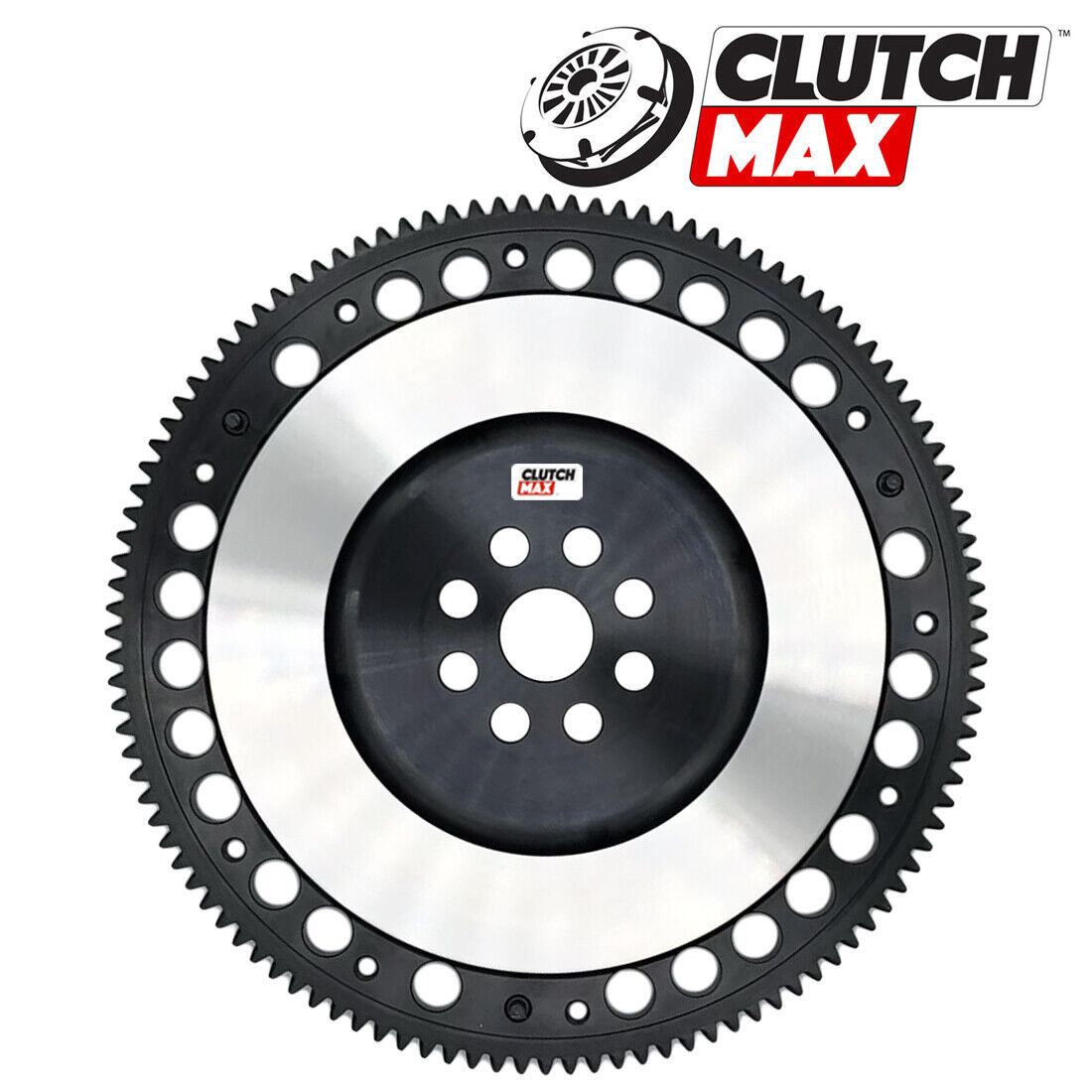

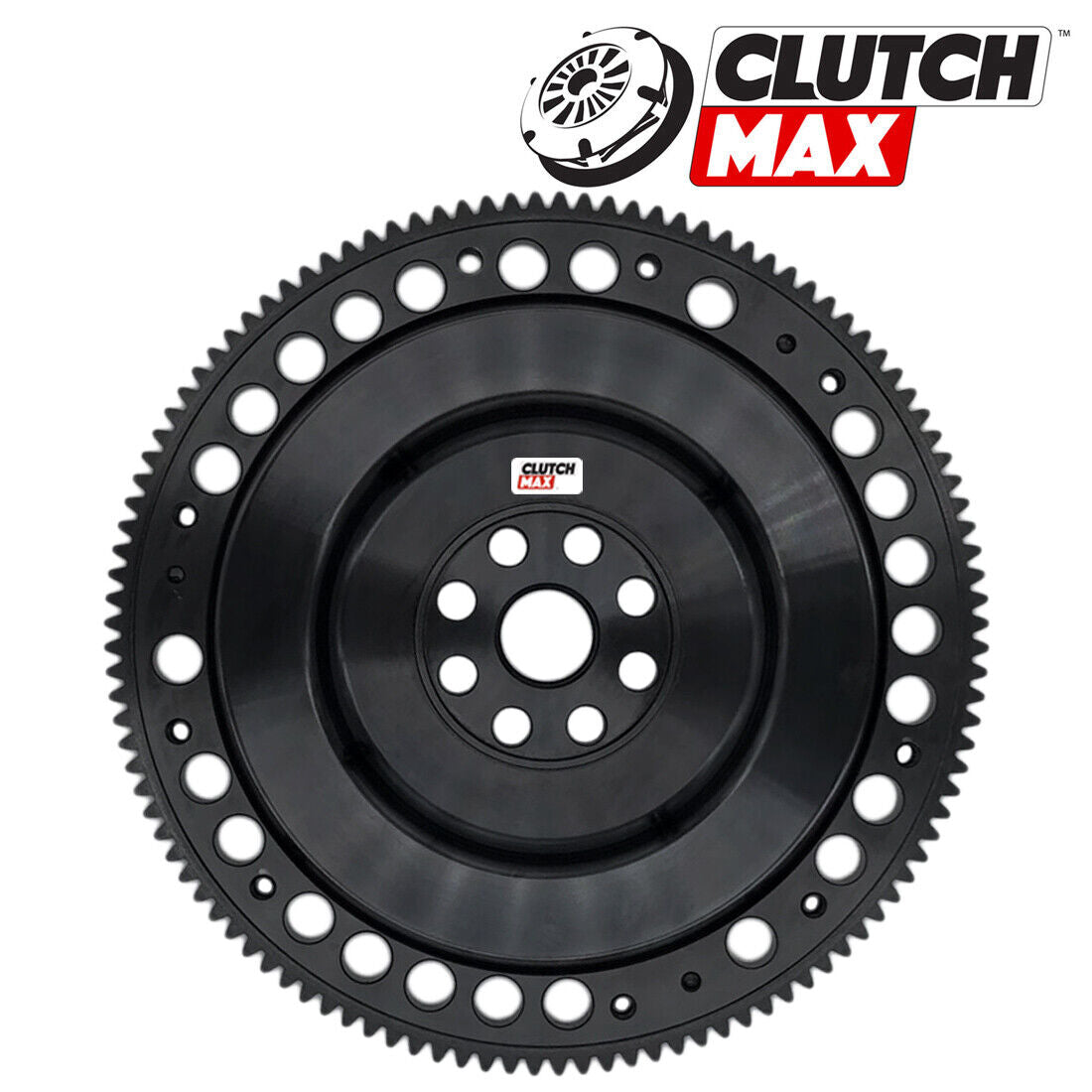

• Performance Chromoly Lightweight Flywheel (10.22 lbs, 112 ring gear​​​​​​​)

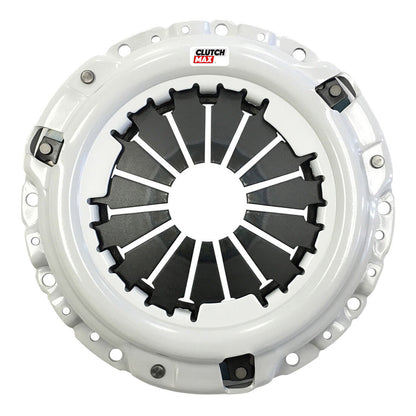

• Performance Pressure Plate

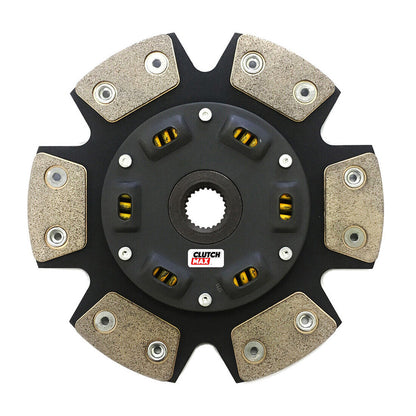

• Performance Stage 4 Ceramic 6-Puck Sprung Disc (8-5/8" (220mm) x 1" (24.9mm) x 24 spline)

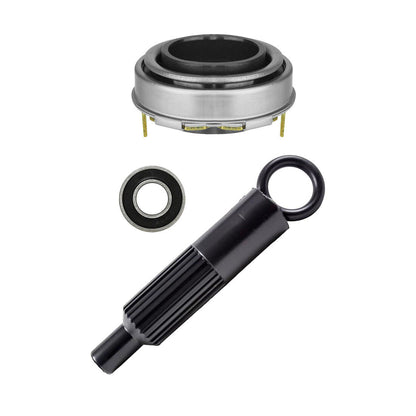

• Release Bearing
• Pilot Bearing
• Alignment Tool
• Clutch Installation Guide
