VEHICLE APPLICATION

  • Fits 1999 - 2010 Ford F-150 (5.4L SOHC Triton V8)
  • Fits 2004 - 2004 Ford F-150 Heritage (5.4L SOHC Triton V8)
  • Fits 1999 - 2001 Ford F-250 (5.4L SOHC Triton V8)
  • Fits 1999 - 2010 Ford F-250 Super Duty (5.4L SOHC Triton V8)
  • Fits 1999 - 2010 Ford F-350 Super Duty (5.4L SOHC Triton V8)

Note: Replaces factory self-adjust type clutch with better load capacity pressure plate for improved performance and longevity

ClutchMax Stage 3 Clutch Kit and HD Flywheel set key features:

  • Flywheel is made from high magnesium content nodular cast iron material for greater strength and extended use. Less expensive than billet steel, chromoly steel or billet aluminum flywheels yet 2X stronger than OE flywheel.
  • Pressure Plate made from Ductile/ Nodular Cast Iron for maximum strength and highest wear resistant.
  • Diaphragm springs made from 51CrV4 steel (imported from Germany) endure a multiple stage, heat-treating process for uncompromising performance and durability.
  • Disc made from sintered copper ceramic pads with chromoly sprung hub for ultimate holding power, maximum performance and extended life.
  • Properly suited for heavy towing, off-road use, performance street driving and moderate daily use.

Torque Capacity: 610 lb-ft

Horsepower Rating: 565 HP

Recommended break-in period: 500 mile

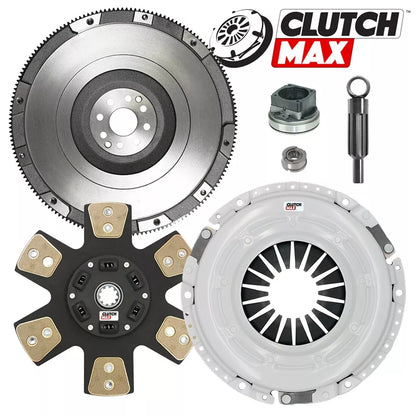

What's included in this complete bundle set:

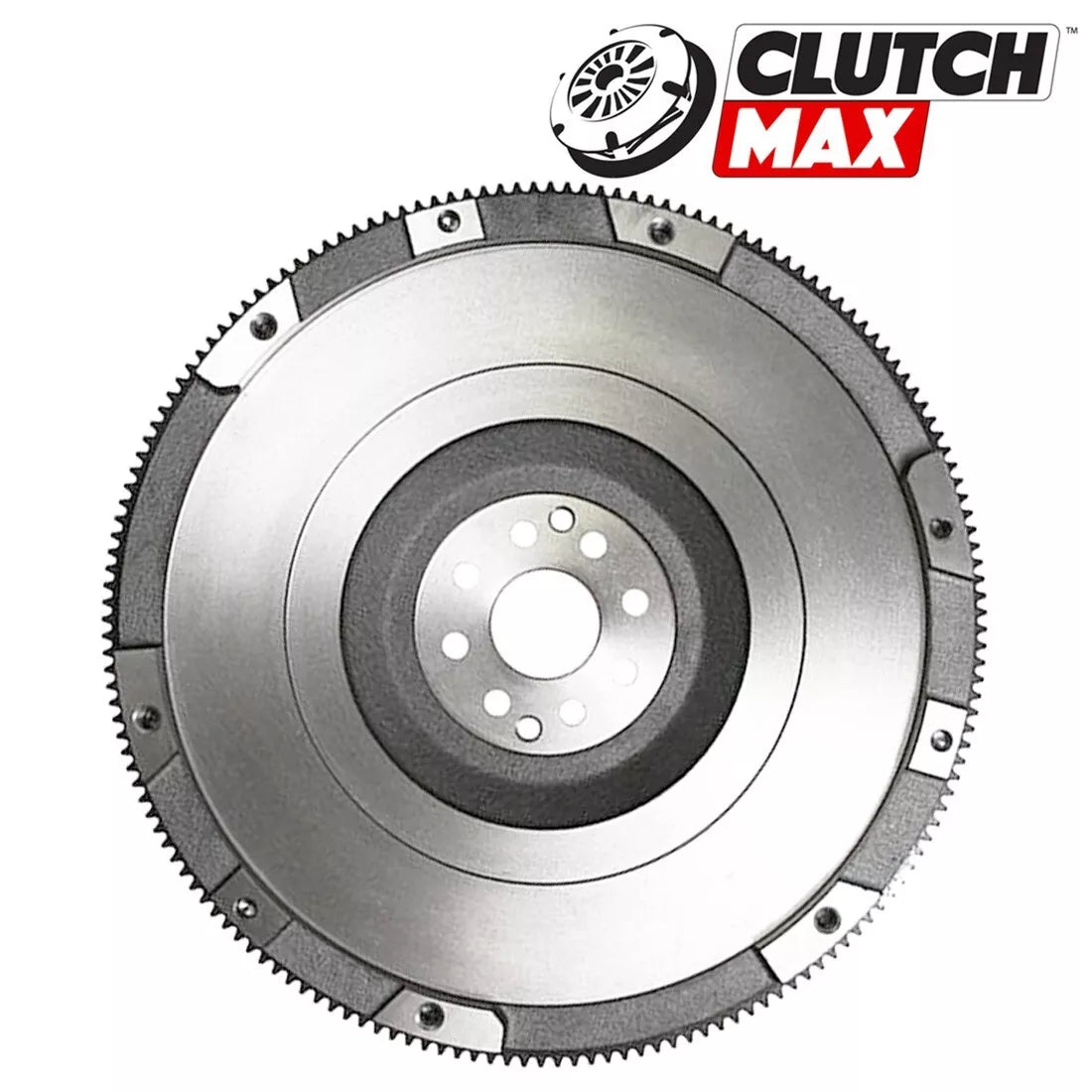

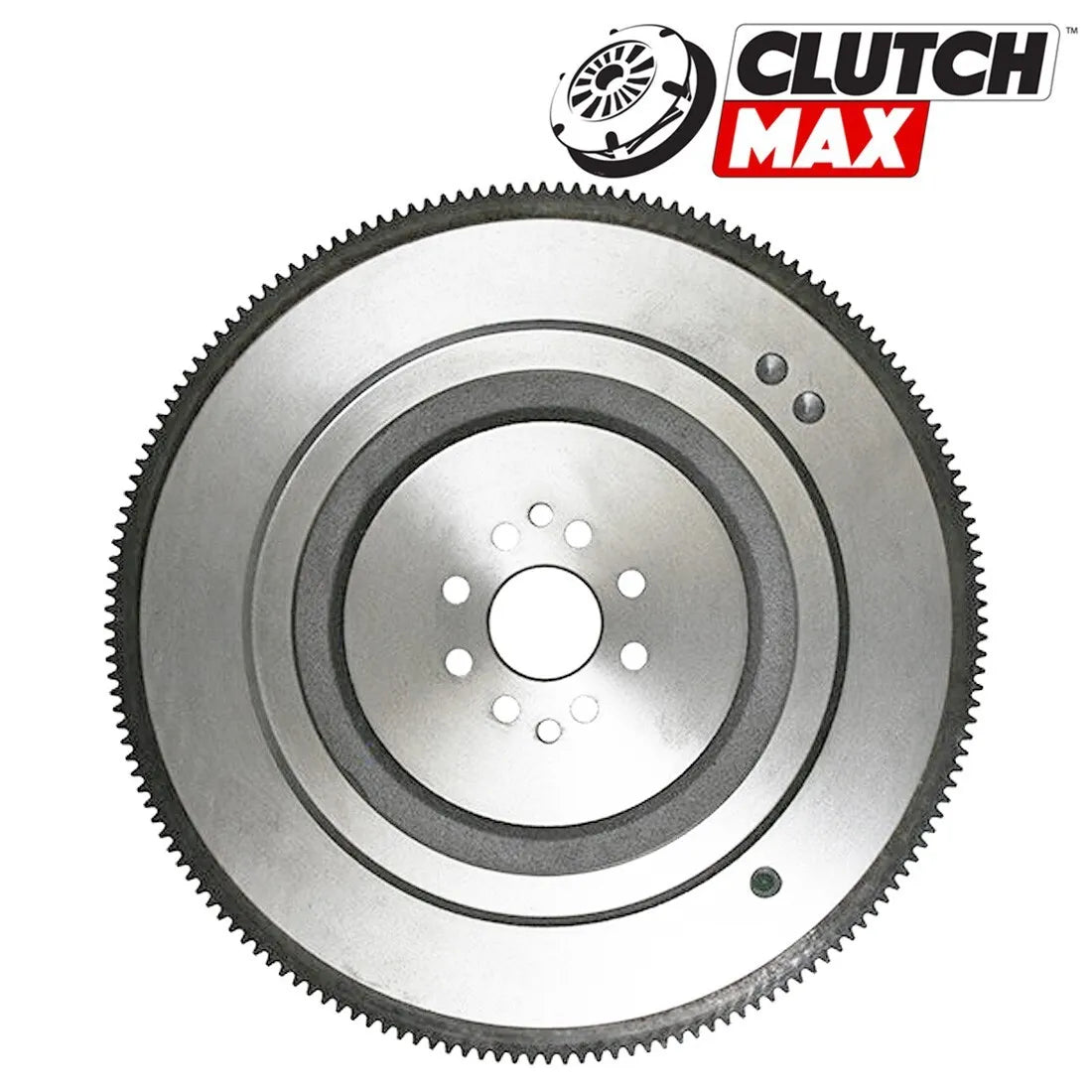

  • Nodular HD Flywheel (35.4 lbs, 164 ring gear)

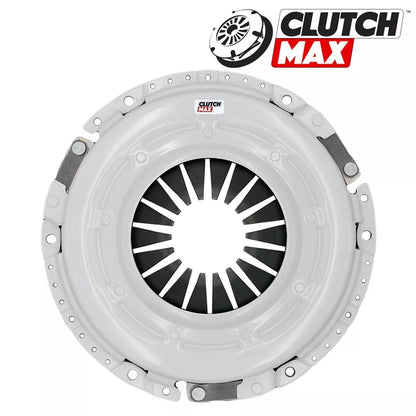

  • Performance HD Pressure Plate (HD non self-adjust type)

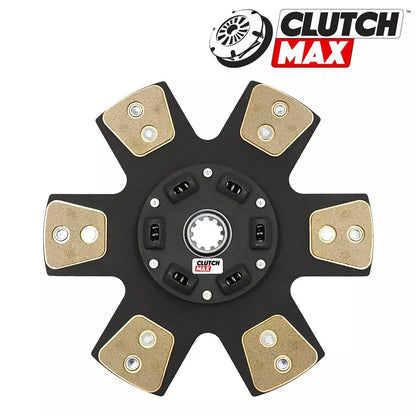

  • Performance Stage 3 Ceramic 6-Puck Sprung Disc (11-7/8" x 1-1/4" x 10 spline)

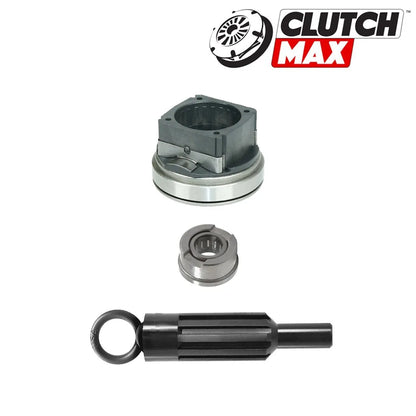

  • HD Throwout Bearing
  • HD Pilot Bearing
  • Alignment Tool
  • Clutch Installation Guide
