VEHICLE APPLICATION

  • Fits 1992 - 2005 Honda Civic (1.5L, 1.6L, 1.7L SOHC 4cyl D15, D16, D17)
  • Fits 1993 - 1997 Honda Civic Del Sol (1.5L, 1.6L SOHC 4cyl D15, D16)



ClutchMax Stage 1 Clutch Kit and Performance Flywheel set key features:

  • Performance Chromoly Flywheels are made from 4140 Chromoly forged steel, CNC machined and dynamically computer balanced to 15,000 RPM.
  • Pressure Plate made from Ductile/ Nodular Cast Iron for maximum strength and highest wear resistant.
  • Diaphragm springs made from 51CrV4 steel (imported from Germany) endure a multiple stage, heat-treating process for uncompromising performance and durability.
  • Disc made from HD woven organic facing with high copper content for greater burst strength and durability.
  • Properly suited for daily driving, performance street driving and light track use.



Torque Capacity:  190 lb-ft

Horsepower Rating:  211 HP

Recommended break-in period:  500 mile

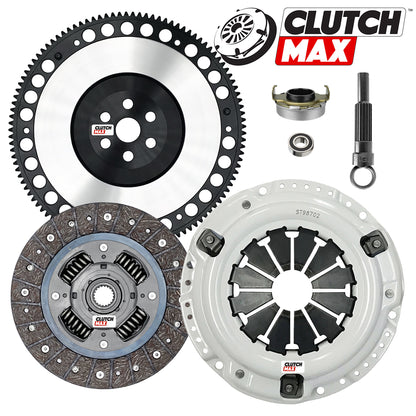

What's included in this complete bundled set:

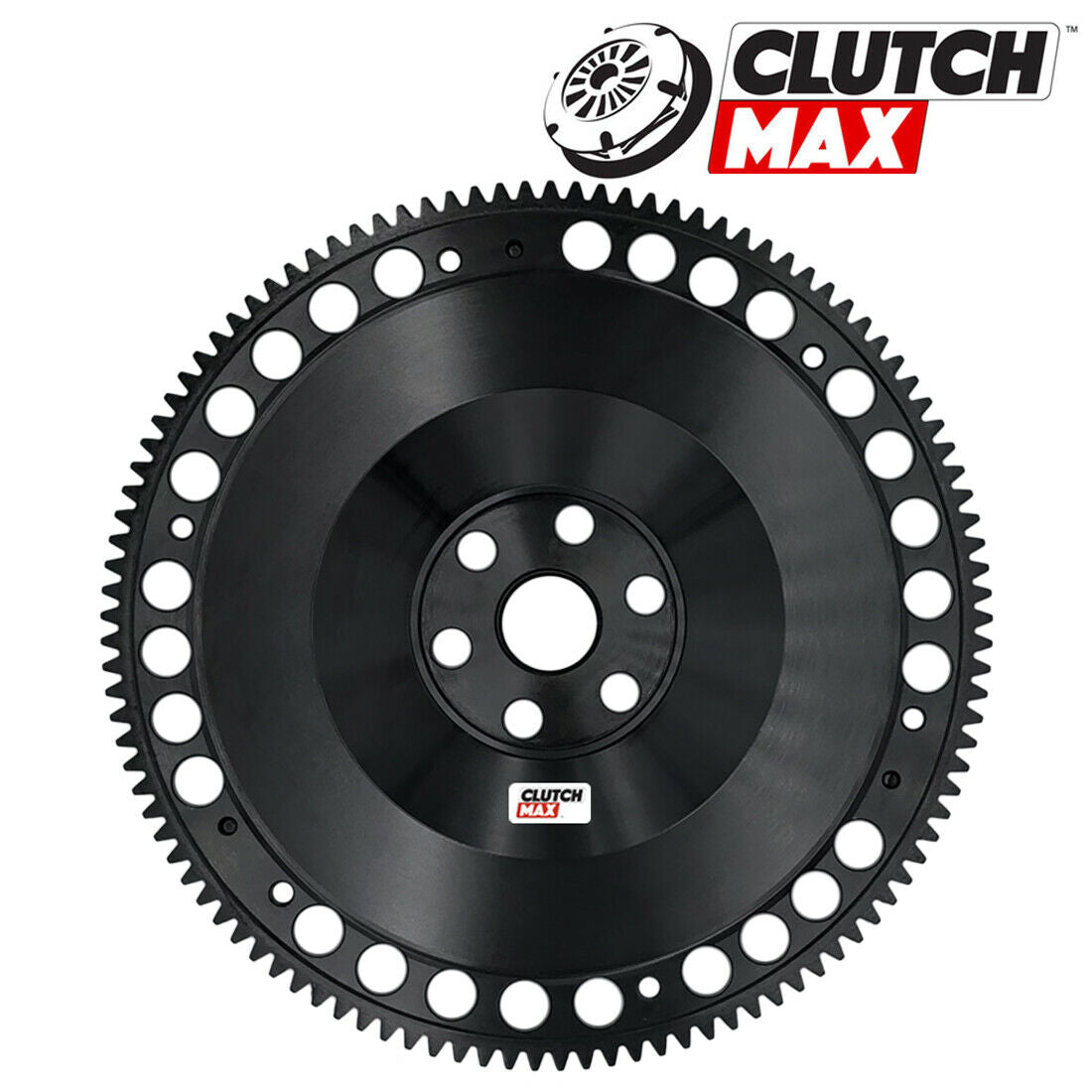

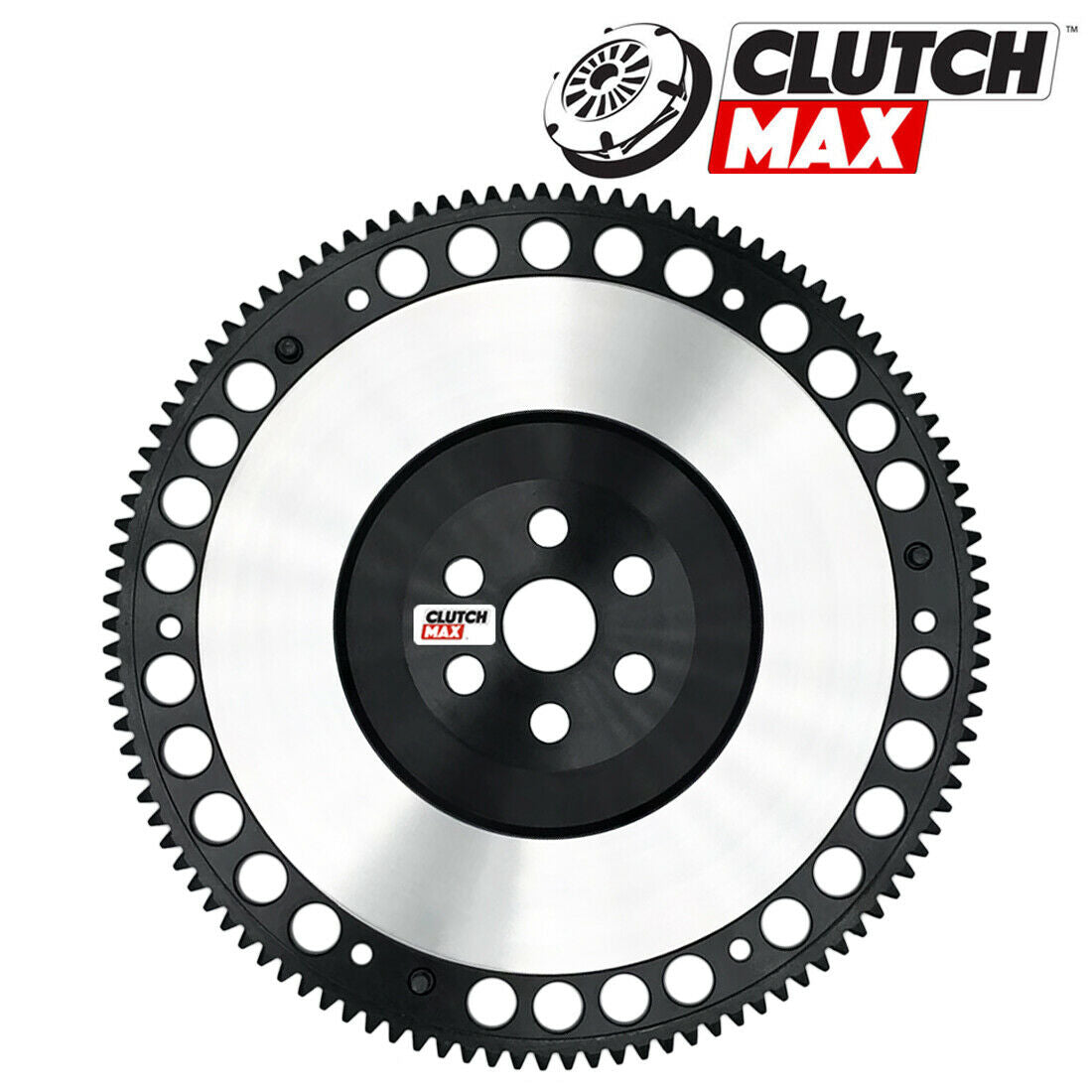

  • Performance Lightweight Chromoly Flywheel (8.82 lbs, 109 ring gear)

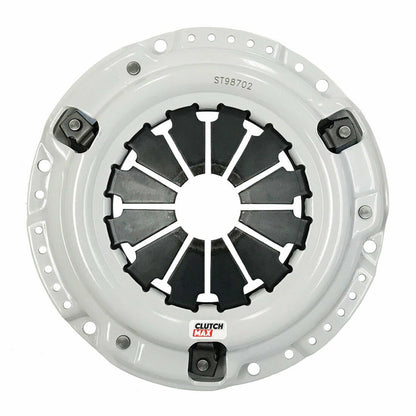

  • Performance Pressure Plate

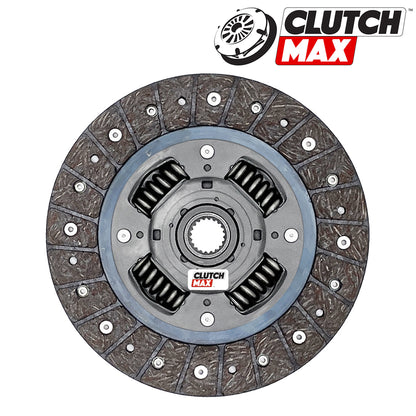

  • Performance Stage 1 HD Woven Organic Disc (8-1/4" x 7/8" x 20 spline)

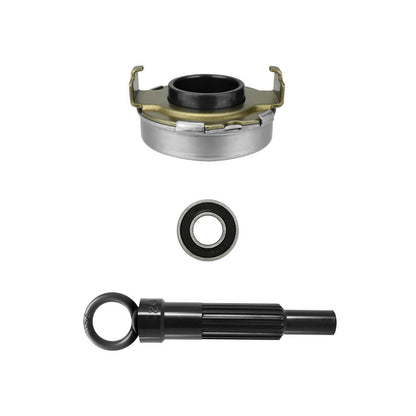

  • Release Bearing
  • Pilot Bearing
  • Alignment Tool
  • Clutch Installation Guide
