VEHICLE APPLICATION

  • ​​​​​​​ Fits 2001 - Jan 24th/2005 Dodge Ram 2500, Ram 3500 (5.9L 6cyl Cummins Turbo Diesel; 6-speed NV5600)

Important Note: Fits vehicles equipped with New Venture NV5600 6-speed transmission only. This transmission is easily identifiable because the reverse is to the RIGHT and UP



  • Clutch Size:            13" x 1-3/8" x 10 spline
  • Torque Capacity:  730 lb-ft
  • HP Rating:              420 HP

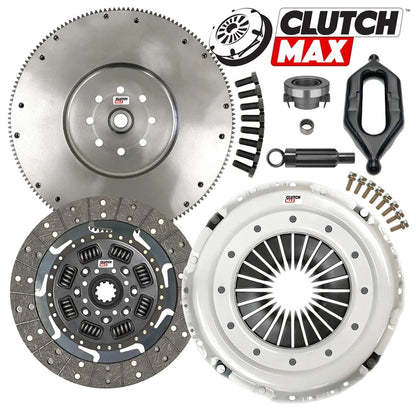

What's included in this complete clutch and flywheel set:

  • 1 each 13" Nodular Heavy-Duty Solid Flywheel
  • 1 each 13" Performance Stage 1 Heavy-Duty Pressure Plate

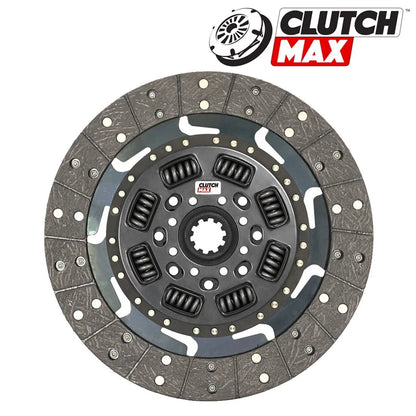

  • 1 each 13" Performance Stage 1 Heavy-Duty HD Woven Organic Disc
  • 1 each Heavy-Duty High-Temp Throwout Bearing
  • 1 each Pilot Bearing
  • 1 each Clutch Fork
  • 1 each Clutch Alignment Tool
  • 8 each Flywheel Mounting Bolts
  • 8 each Pressure Plate Mounting Bolts
  • Clutch Installation Guide
  •

Key Features:

  • Flywheel is made from high magnesium content nodular cast iron material for greater strength and extended use
  • Pressure Plate made from Ductile/ Nodular Cast Iron for maximum strength and highest wear resistant
  • Diaphragm Springs made from 51CrV4 steel (imported from Germany). More than 1 millon cycle of fatigue life on each spring
  • Disc made from HD woven anti-burst organic facing with high copper content
  • All ClutchMax products are backed by industry's best 12 months or 15,000 mi manufacturer warranty
  • Proudly made in the U.S.A.
