- Fits 1986u00a0- 1995u00a0Suzuki Samurai (1.3L SOHC 4cyl)
- Fits 1989u00a0- 1992 Suzuki Sidekick (1.3L SOHC 4cyl)
ClutchMaxu00aeu00a0Stage 1 Clutch Kit and HD Flywheel set key features:
- Flywheel is made from high magnesium content nodular cast iron material for greater strength and extended use. Less expensive than billet steel, chromoly steel or billet aluminum flywheels yet 2X stronger than OE flywheel.
- Performance Pressure Plate made from Ductile/ Nodular Cast Iron for maximum strength and highest wear resistant.
- Diaphragm springs made from 51CrV4 steel (imported from Germany) endure a multiple stage, heat-treating process for uncompromisingu00a0performance and durability.
- Disc made from HD woven organic facing with high copper contentsu00a0for greater burst strength and durability.
- Properly suited for daily driving, performanceu00a0street drivingu00a0and light off-road use.
Torque Capacity:u00a0u00a0180u00a0lb-ft
Horsepower Rating:u00a0u00a0187u00a0HP
Recommended break-in period:u00a0 500 mile

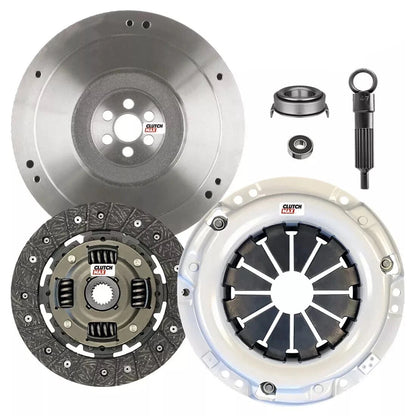

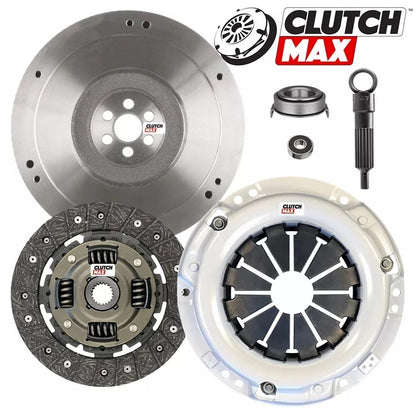

What's included in this bundle set:

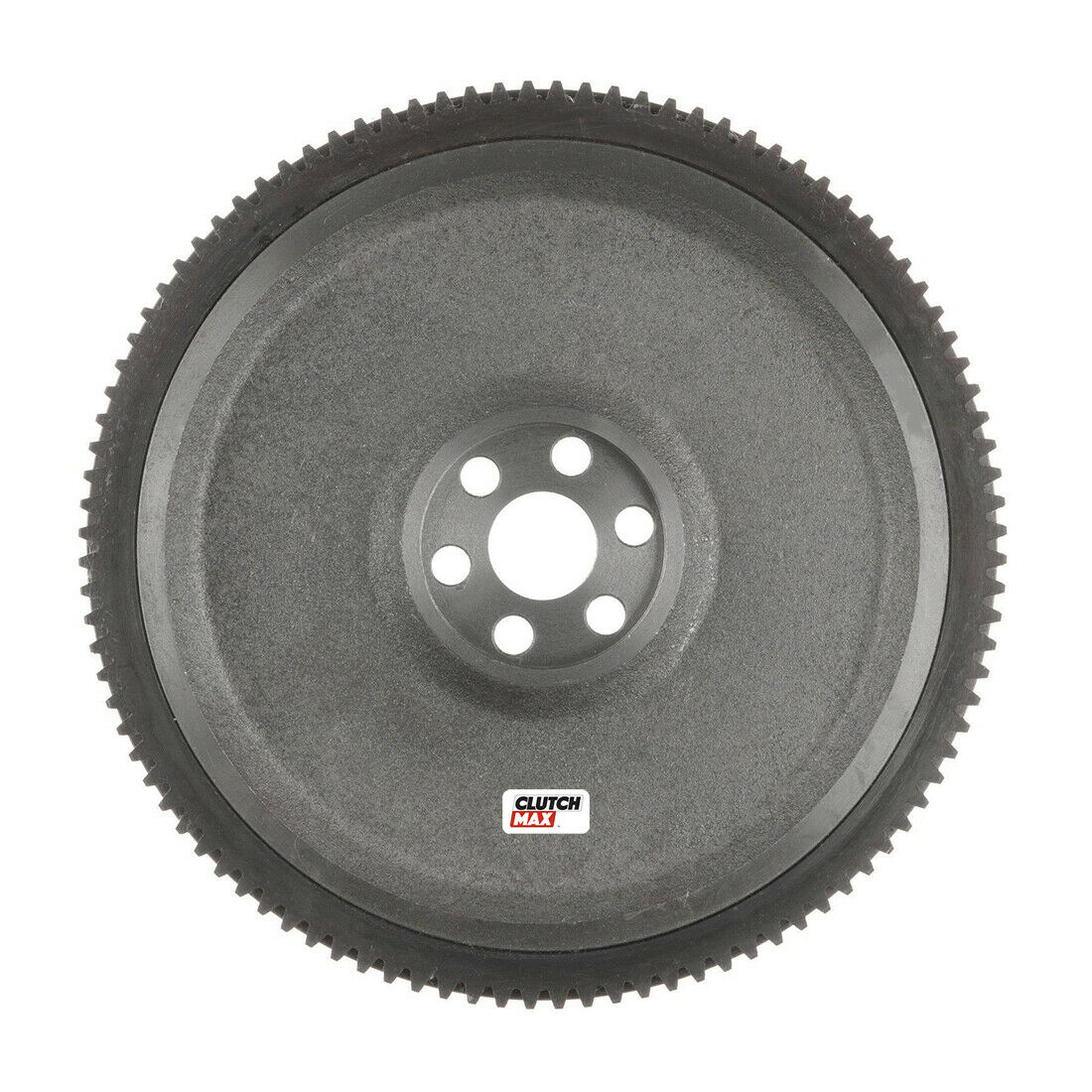

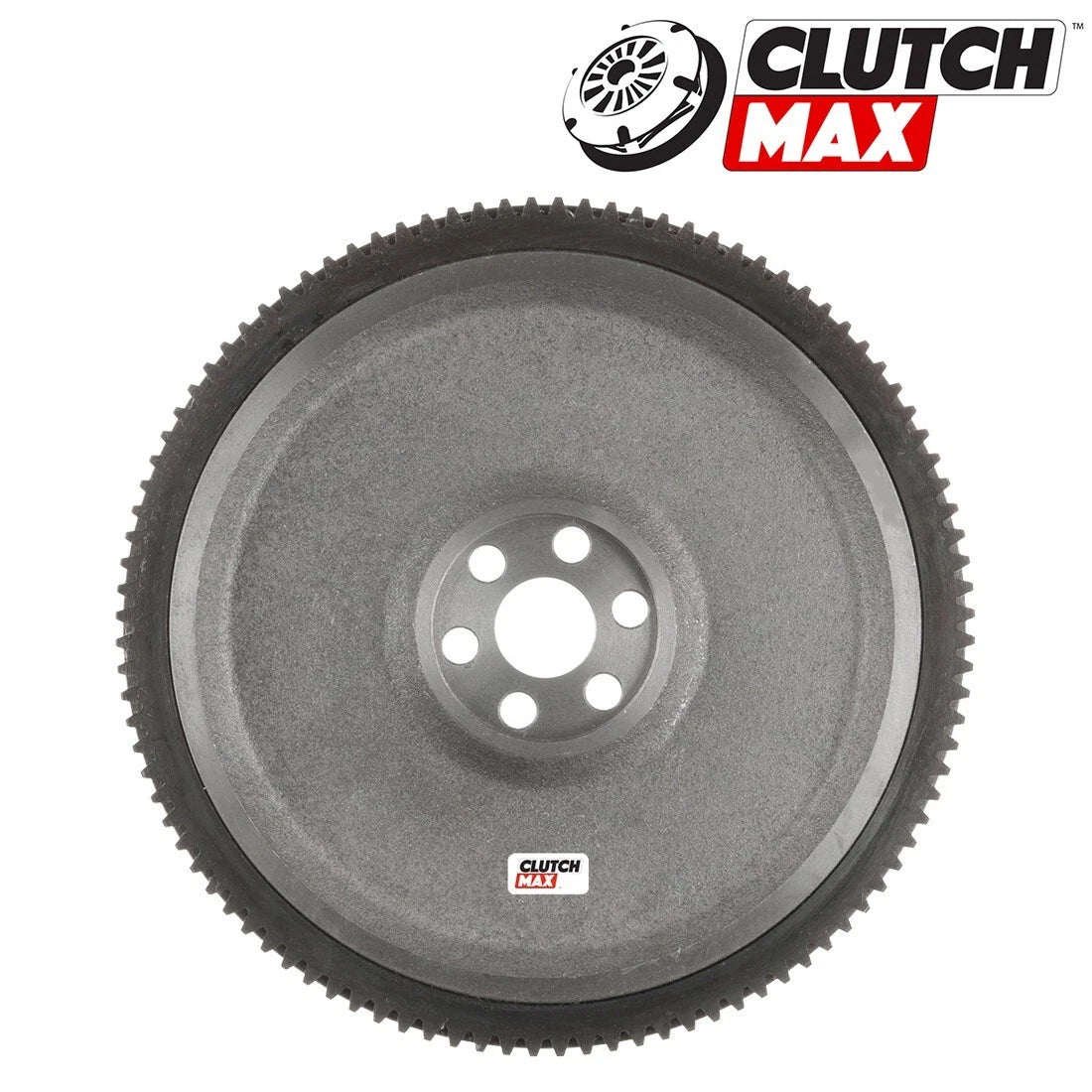

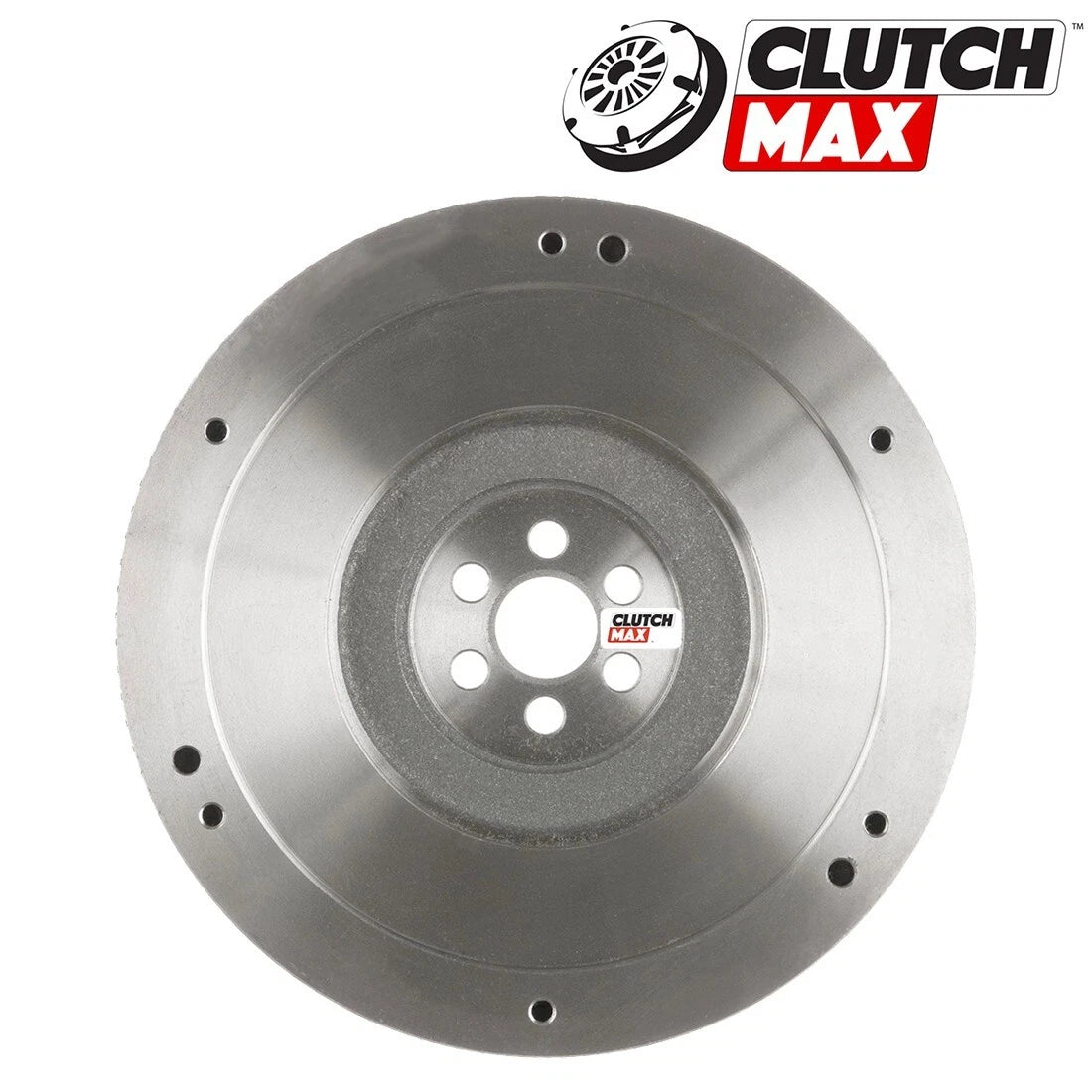

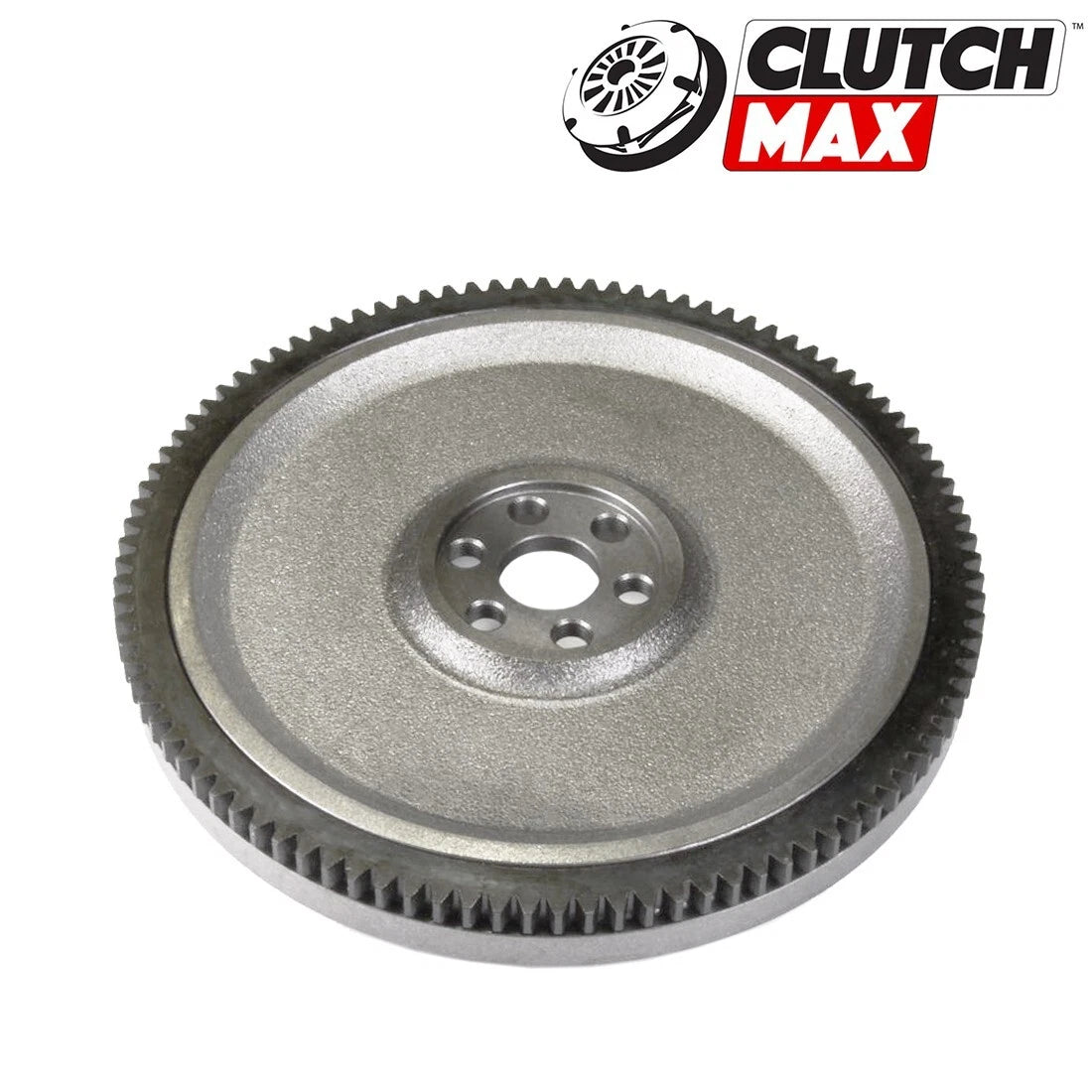

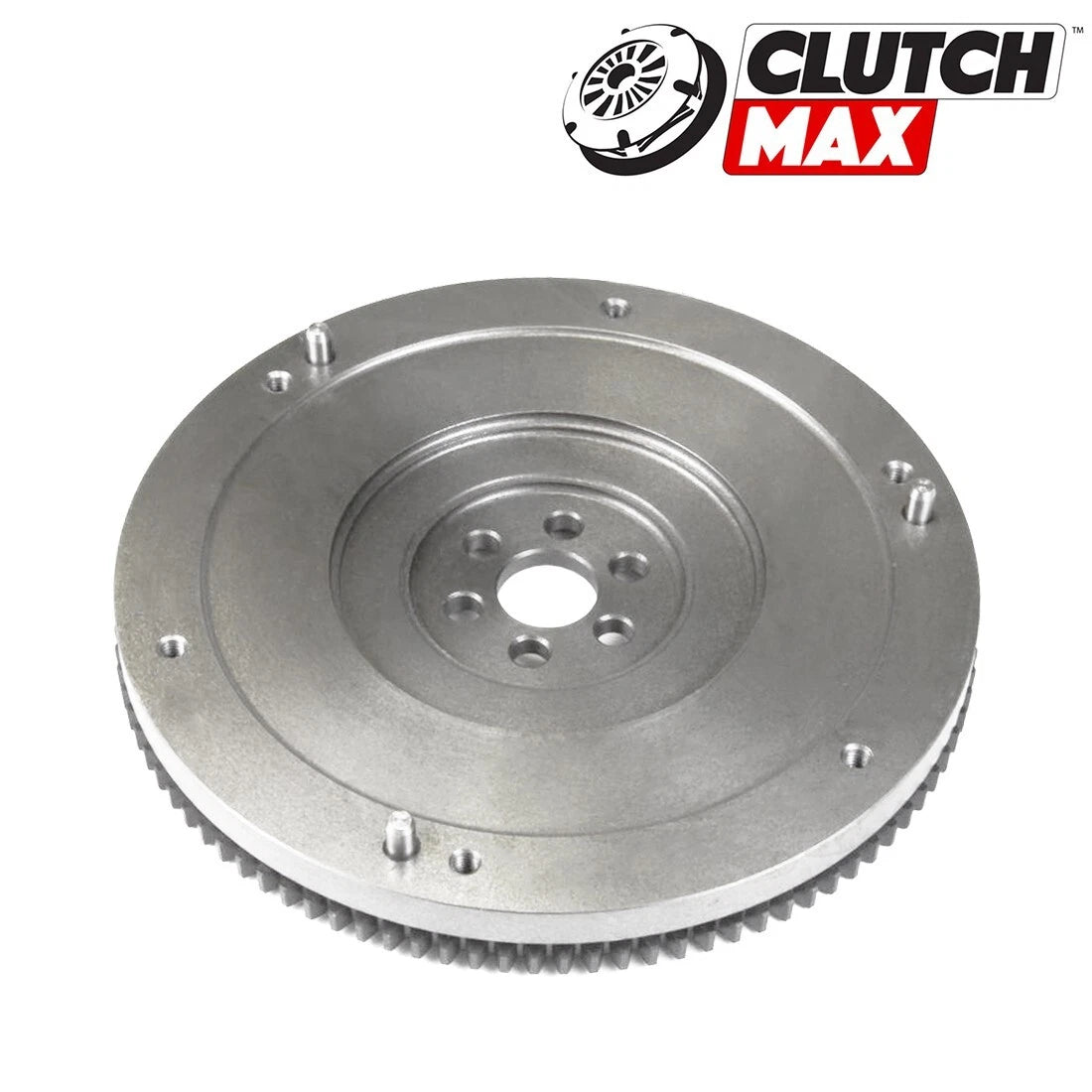

- Nodular Cast HD Flywheel (13.86 lbs, 100 ring gear teeth)
- Performance Pressure Plate

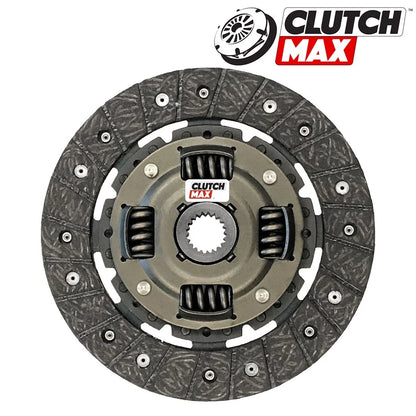

- Performance Stage 1 HD Woven Organic Disc (7-1/2"u00a0x 15/16"u00a0x 20u00a0spline)

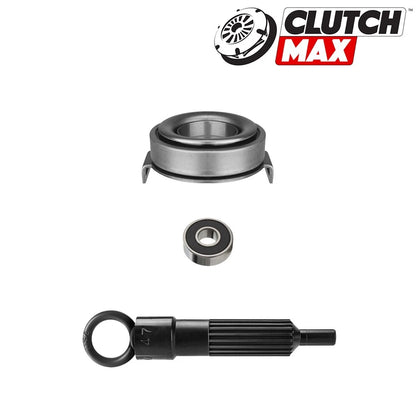

- Releaseu00a0Bearing
- Pilot Bearing
- Alignmentu00a0Tool
- Clutch Installation Guide
Fitment
| year |
make |
model |
trim |
engine |
notes |
| 1986 |
Suzuki |
Samurai |
JX Sport Utility 2-Door |
1.3L 1325CC 81Cu. In. l4 GAS SOHC Naturally Aspirated |
|
| 1986 |
Suzuki |
Samurai |
JX SE Sport Utility 2-Door |
1.3L 1325CC 81Cu. In. l4 GAS SOHC Naturally Aspirated |
|
| 1986 |
Suzuki |
Samurai |
JA Sport Utility 2-Door |
1.3L 1325CC 81Cu. In. l4 GAS SOHC Naturally Aspirated |
|
| 1987 |
Suzuki |
Samurai |
JX Sport Utility 2-Door |
1.3L 1325CC 81Cu. In. l4 GAS SOHC Naturally Aspirated |
|
| 1987 |
Suzuki |
Samurai |
JX SE Sport Utility 2-Door |
1.3L 1325CC 81Cu. In. l4 GAS SOHC Naturally Aspirated |
|
| 1987 |
Suzuki |
Samurai |
JA Sport Utility 2-Door |
1.3L 1325CC 81Cu. In. l4 GAS SOHC Naturally Aspirated |
|
| 1988 |
Suzuki |
Samurai |
JX Sport Utility 2-Door |
1.3L 1325CC 81Cu. In. l4 GAS SOHC Naturally Aspirated |
|
| 1988 |
Suzuki |
Samurai |
JA Sport Utility 2-Door |
1.3L 1325CC 81Cu. In. l4 GAS SOHC Naturally Aspirated |
|
| 1989 |
Suzuki |
Sidekick |
JA Sport Utility 2-Door |
1.3L 1325CC 81Cu. In. l4 GAS SOHC Naturally Aspirated |
|
| 1989 |
Suzuki |
Samurai |
Base Sport Utility 2-Door |
1.3L 1325CC 81Cu. In. l4 GAS SOHC Naturally Aspirated |
|
| 1990 |
Suzuki |
Samurai |
JL Sport Utility 2-Door |
1.3L 1298CC 79Cu. In. l4 GAS SOHC Naturally Aspirated |
|
| 1991 |
Suzuki |
Samurai |
JS Sport Utility 2-Door |
1.3L 1298CC 79Cu. In. l4 GAS SOHC Naturally Aspirated |
|
| 1991 |
Suzuki |
Samurai |
JL Sport Utility 2-Door |
1.3L 1298CC 79Cu. In. l4 GAS SOHC Naturally Aspirated |
|
| 1991 |
Suzuki |
Samurai |
JA Sport Utility 2-Door |
1.3L 1298CC 79Cu. In. l4 GAS SOHC Naturally Aspirated |
|
| 1992 |
Suzuki |
Samurai |
JL Sport Utility 2-Door |
1.3L 1298CC 79Cu. In. l4 GAS SOHC Naturally Aspirated |
|
| 1992 |
Suzuki |
Samurai |
JA Sport Utility 2-Door |
1.3L 1298CC 79Cu. In. l4 GAS SOHC Naturally Aspirated |
|
| 1993 |
Suzuki |
Samurai |
JL Sport Utility 2-Door |
1.3L 1298CC 79Cu. In. l4 GAS SOHC Naturally Aspirated |
|
| 1993 |
Suzuki |
Samurai |
JA Sport Utility 2-Door |
1.3L 1298CC 79Cu. In. l4 GAS SOHC Naturally Aspirated |
|
| 1994 |
Suzuki |
Samurai |
JL Sport Utility 2-Door |
1.3L 1298CC 79Cu. In. l4 GAS SOHC Naturally Aspirated |
|
| 1995 |
Suzuki |
Samurai |
JL Sport Utility 2-Door |
1.3L 1298CC 79Cu. In. l4 GAS SOHC Naturally Aspirated |
|
Specifications
| Brand: |
ClutchMax |
| Manufacturer Part Number: |
CM04104HDFW-ST1 |
| Flywheel Material: |
Nodular Cast Iron |
| Fitment Type: |
Direct Replacement |
| Transmission Type: |
Manual |
| Clutch Material: |
HD Woven Organic |
| Bundle Description: |
Complete Stage 1 Clutch Kit bundled with HD Flywheel |
| Clutch Disc Style: |
Full Face Sprung Hub |
| Pressure Plate Type: |
HD Diaphragm Type |
| Surface Finish: |
New, Ductile Iron, 4 Stage Heat Treated |
