CLUTCHMAX 700HP TWIN PLATE CLUTCH KIT & PERFORMANCE CHROMOLY FLYWHEEL BUNDLE SET [CM07230MPLSF-CK]

ClutchMax twin-plate clutch flywheel system provides a drastic increase in horsepower and torque holding capacity with excellent drivability characteristics. Many new features of unique twin-plate clutch design provide positive attributes. Two 240mm full faced discs are used in conjunction with a pressure plate and a mid-plate, thereby providing additional friction area for 100% increased torque capacity. Proprietary designed pressure plate provides more consistent pedal feel, clean release and smoother load transfers between shifting engagements even at 9,000 RPM. One-piece solid 4140 chromoly forged steel flywheel is CNC machined and balanced within 0.100 oz for smooth operation at all RPM range.

Torque Capacity:  700 lb-ft

Horsepower Rating:  700 HP

Recommended break-in period:  500 mile

What's included in this complete clutch flywheel system:

• 1 each Performance Solid Chromoly Flywheel (22% weight reduction for ideal balance of track and street driving)
• 1 each Performance HD Pressure Plate
• 2 each Performance Carbon Organic Composite Rigid Discs
• 1 each Performance HD Mid-Plate

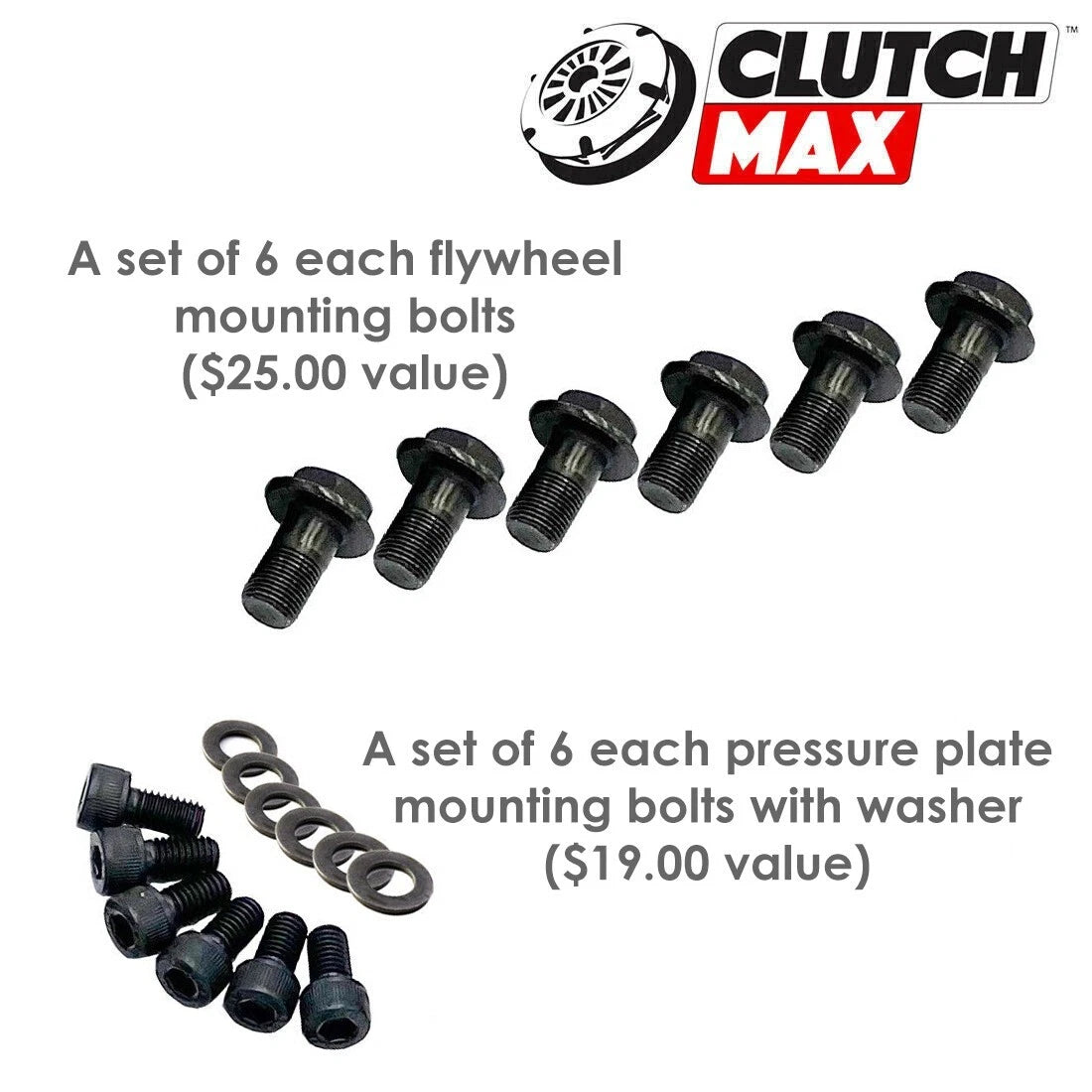

• 6 each Pressure Plate Mounting Bolts with Locking Washers
• 6 each Flywheel Mounting Bolts
• 1 each Clutch Alignment Tool

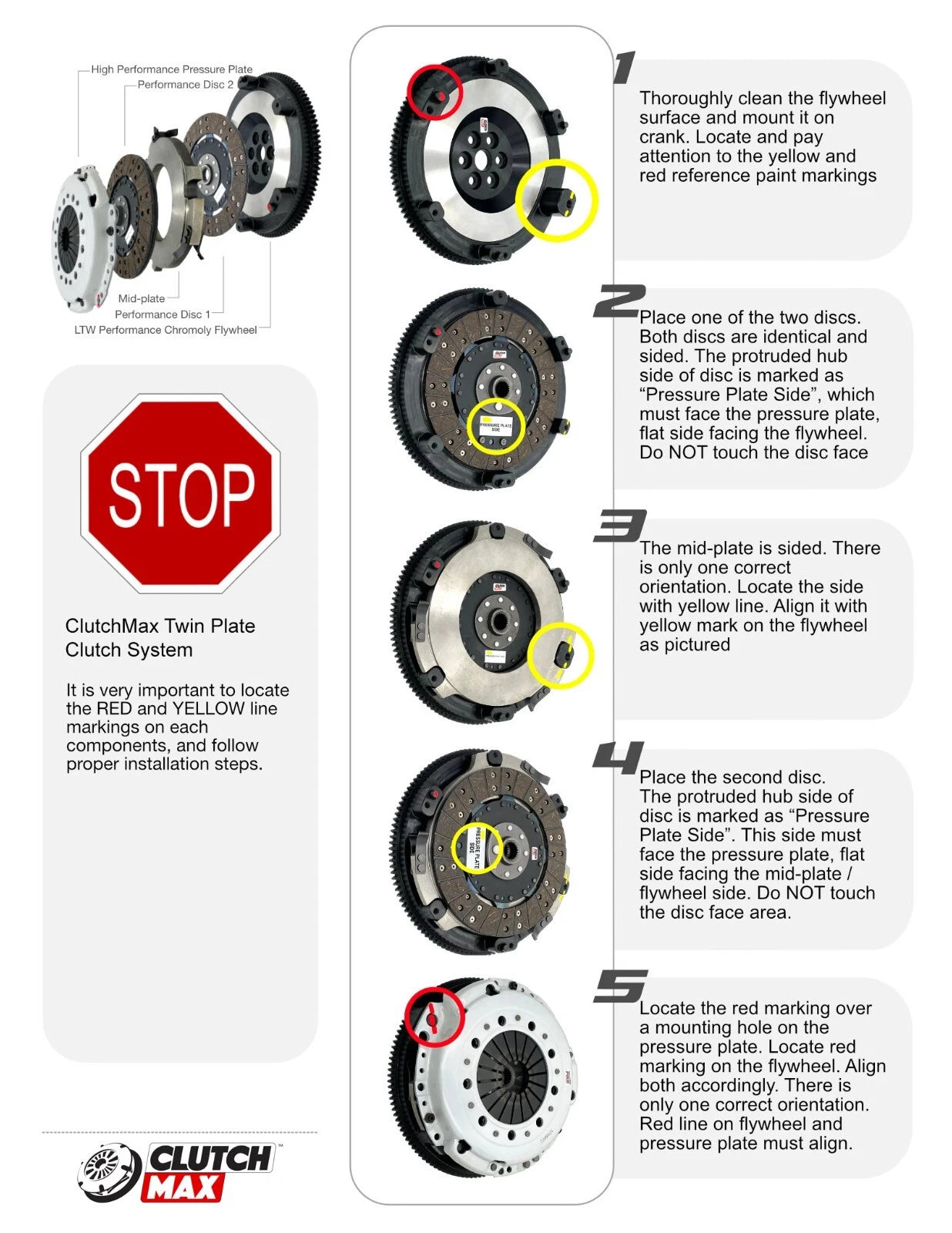

• Clutch Installation Guide

ClutchMax differences:

• Feel:  Improved throttle response. Light to moderate pedal effort. Quick but smooth positive engagement.
• Life:   Advanced design and carefully selected material provides extended life.
• Quality:  All products are designed, engineered, assembled, tested and inspected by ClutchMax to ensure highest quality. Proudly developed and engineered in the U.S.A.
• Solid Flywheel Upgrade:  A stock clutch set up on Ford Mustang Ecoboost with 2.3L Turbo uses a dual mass flywheel. Dual mass flywheels are generally heavy and leave a lot to be desired in terms of performance and durability under heavy use such as track driving. One of the easiest ways to change the driving characteristics is to delete the dual mass flywheel and replace it with solid flywheel that is lighter. Combination of lightweight solid flywheel, advanced rigid hub multi-plate discs, proprietary mid-plate and pressure plate provides quicker engine response and better feeling clutch that's designed to handle more abuse on and off the track.

VEHICLE APPLICATION

• Fits 2015 - 2023 Ford Mustang Ecoboost (2.3L DOHC 4cyl Turbo with MT-82 6-speed)

Note: Features advanced multi-plate clutch for 100% increase in torque capacity. Replaces heavy and inconsistent factory dual mass flywheel with one piece solid chromoly flywheel for vastly improved feel and performance.
