CLUTCHMAX STAGE 4 CLUTCH KIT & FLYWHEEL WITH SLAVE CYLINDER BUNDLE SET [CM04273HDCWS-FW167578-ST4]

Code: CM04273HDCWS-FW167578-ST4
Add Your Review
CLUTCHMAX STAGE 4 CLUTCH KIT & FLYWHEEL WITH SLAVE CYLINDER BUNDLE SET [CM04273HDCWS-FW167578-ST4] CLUTCHMAX STAGE 4 CLUTCH KIT & FLYWHEEL WITH SLAVE CYLINDER BUNDLE SET [CM04273HDCWS-FW167578-ST4] CLUTCHMAX STAGE 4 CLUTCH KIT & FLYWHEEL WITH SLAVE CYLINDER BUNDLE SET [CM04273HDCWS-FW167578-ST4] CLUTCHMAX STAGE 4 CLUTCH KIT & FLYWHEEL WITH SLAVE CYLINDER BUNDLE SET [CM04273HDCWS-FW167578-ST4] CLUTCHMAX STAGE 4 CLUTCH KIT & FLYWHEEL WITH SLAVE CYLINDER BUNDLE SET [CM04273HDCWS-FW167578-ST4] CLUTCHMAX STAGE 4 CLUTCH KIT & FLYWHEEL WITH SLAVE CYLINDER BUNDLE SET [CM04273HDCWS-FW167578-ST4]
CLUTCHMAX STAGE 4 CLUTCH KIT & FLYWHEEL WITH SLAVE CYLINDER BUNDLE SET [CM04273HDCWS-FW167578-ST4]
CLUTCHMAX STAGE 4 CLUTCH KIT & FLYWHEEL WITH SLAVE CYLINDER BUNDLE SET [CM04273HDCWS-FW167578-ST4] CLUTCHMAX STAGE 4 CLUTCH KIT & FLYWHEEL WITH SLAVE CYLINDER BUNDLE SET [CM04273HDCWS-FW167578-ST4] CLUTCHMAX STAGE 4 CLUTCH KIT & FLYWHEEL WITH SLAVE CYLINDER BUNDLE SET [CM04273HDCWS-FW167578-ST4] CLUTCHMAX STAGE 4 CLUTCH KIT & FLYWHEEL WITH SLAVE CYLINDER BUNDLE SET [CM04273HDCWS-FW167578-ST4] CLUTCHMAX STAGE 4 CLUTCH KIT & FLYWHEEL WITH SLAVE CYLINDER BUNDLE SET [CM04273HDCWS-FW167578-ST4] CLUTCHMAX STAGE 4 CLUTCH KIT & FLYWHEEL WITH SLAVE CYLINDER BUNDLE SET [CM04273HDCWS-FW167578-ST4]
$419.00
In Stock
Add to Wishlist Add to Compare
Category: Chevrolet

  • 1-4 DAYS DELIVERY

  • 100% ORIGINAL AND QUALITY

  • 12 MONTHS / 15,000 MI GUARANTEE

VEHICLE APPLICATION

  • Fits 1997 - 2004 Chevrolet Corvette (5.7L OHV 8cyl LS1)
  • Fits 2001  -2004 Chevrolet Corvette Z06 (5.7L OHV 8cyl LS6)



ClutchMax Stage 4 CSC Clutch Kit and Solid Nodular Flywheel set key features:

  • Flywheel is made from high magnesium content nodular cast iron material for greater strength and extended use. Less expensive than billet steel, chromoly steel or billet aluminum flywheels yet 2X stronger than OE flywheel.
  • Pressure Plate made from Ductile/ Nodular Cast Iron for maximum strength and highest wear resistant.
  • Reinforced diaphragm springs made from 51CrV4 steel endure a multiple stage, heat-treating process for uncompromising performance and durability.
  • Disc made from copper ceramic (cerametallic) pads with precision broached sprung hub for ultimate holding power and maximum performance.
  • Properly suited for track use, performance street driving and moderate daily use.



Torque Capacity:  615 lb-ft

Horsepower Rating:  600 HP

Recommended break-in period:  500 mile

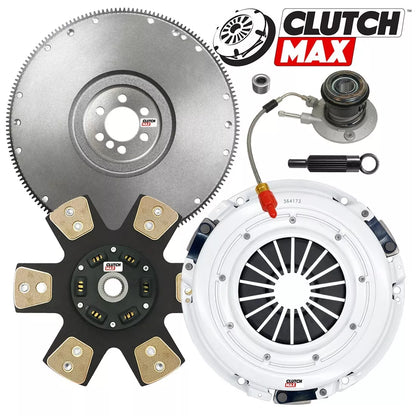

What's included in this bundle set:

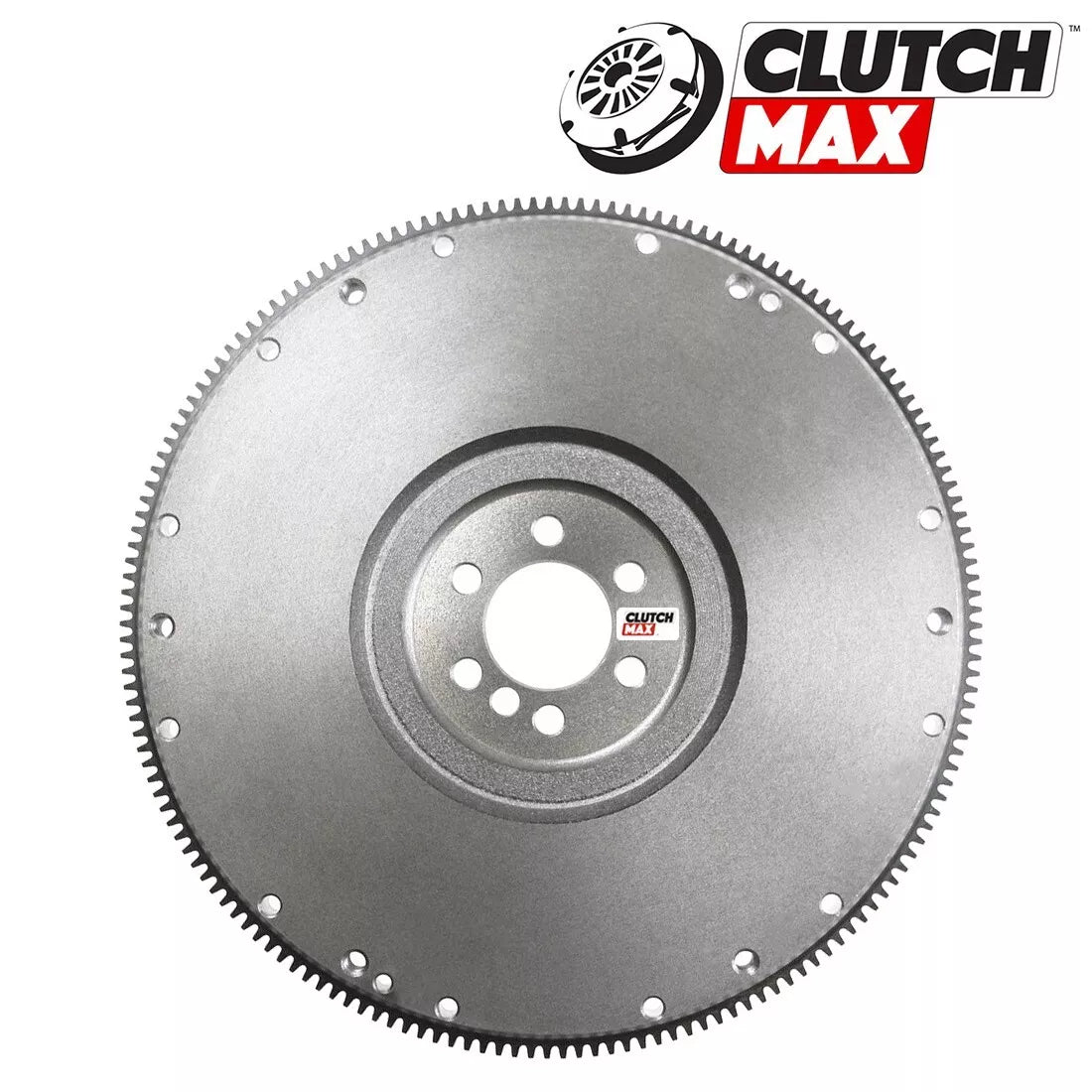

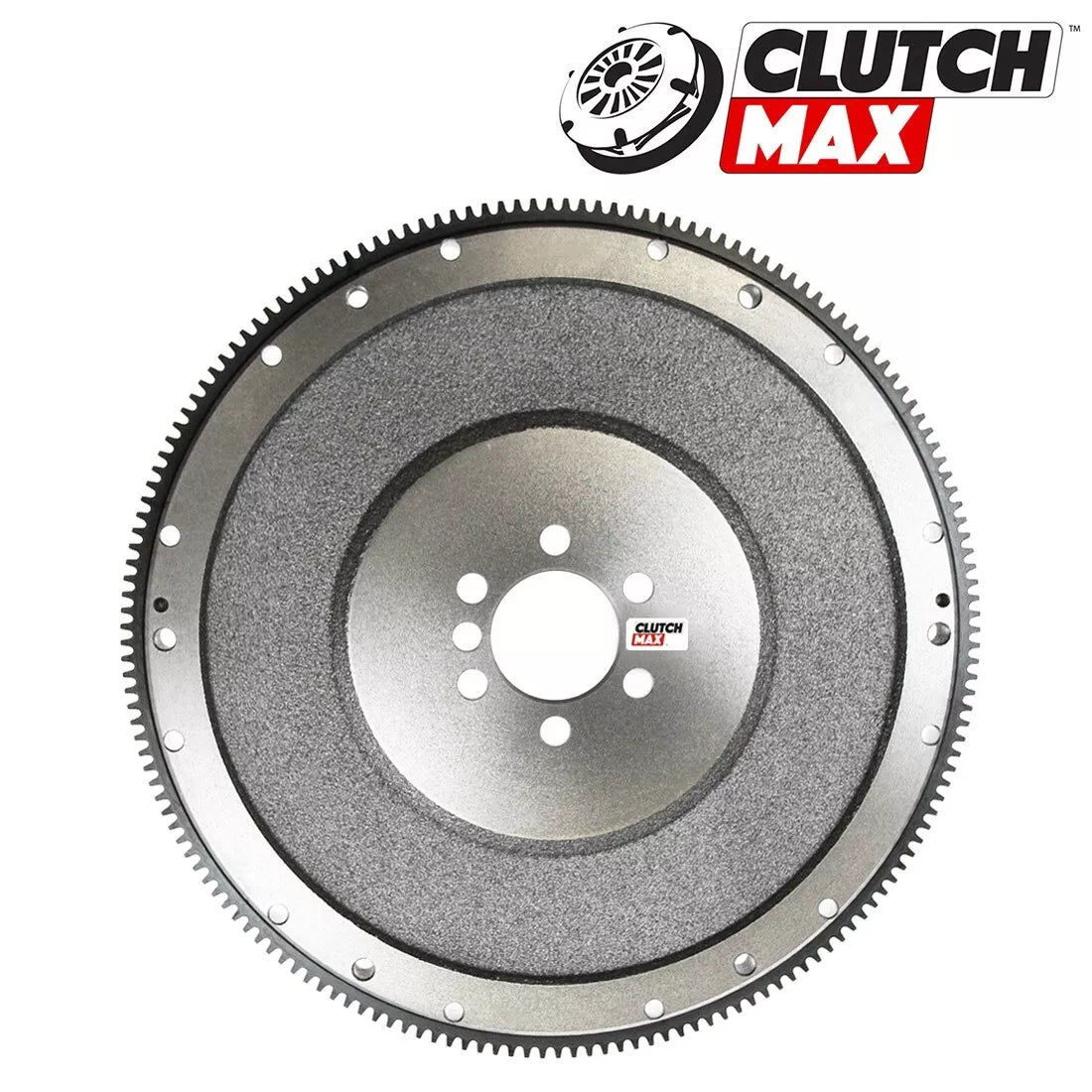

  • 1 each HD Solid Nodular Flywheel (23.45 lbs, flat step, 168 ring gear)

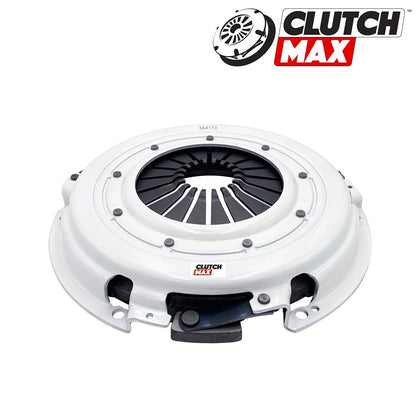

  • 1 each Performance Pressure Plate

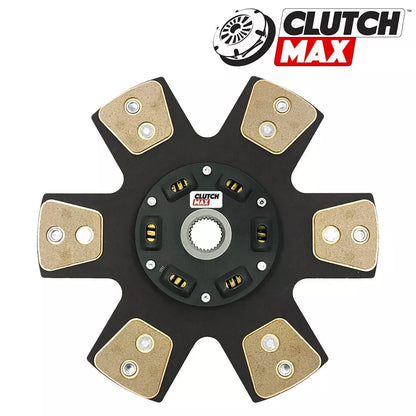

  • 1 each Performance Stage 4 Ceramic 6-Puck Sprung Disc (11-3/4" x 1-1/8" x 26 spline)

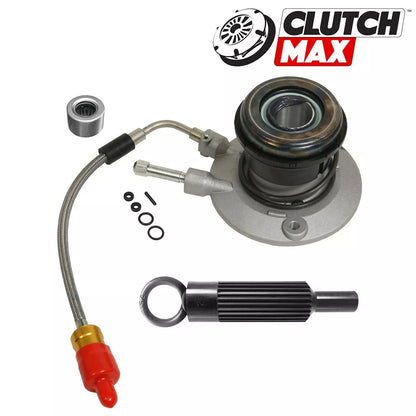

  • 1 each CSC Slave Cylinder Unit with Throw-out Bearing
  • 1 each Pilot Bearing
  • 1 each Alignment Tool
  • Clutch Installation Guide

VEHICLE APPLICATION

  • Fits 1997 - 2004 Chevrolet Corvette (5.7L OHV 8cyl LS1)
  • Fits 2001  -2004 Chevrolet Corvette Z06 (5.7L OHV 8cyl LS6)



ClutchMax Stage 4 CSC Clutch Kit and Solid Nodular Flywheel set key features:

  • Flywheel is made from high magnesium content nodular cast iron material for greater strength and extended use. Less expensive than billet steel, chromoly steel or billet aluminum flywheels yet 2X stronger than OE flywheel.
  • Pressure Plate made from Ductile/ Nodular Cast Iron for maximum strength and highest wear resistant.
  • Reinforced diaphragm springs made from 51CrV4 steel endure a multiple stage, heat-treating process for uncompromising performance and durability.
  • Disc made from copper ceramic (cerametallic) pads with precision broached sprung hub for ultimate holding power and maximum performance.
  • Properly suited for track use, performance street driving and moderate daily use.



Torque Capacity:  615 lb-ft

Horsepower Rating:  600 HP

Recommended break-in period:  500 mile



What's included in this bundle set:

  • 1 each HD Solid Nodular Flywheel (23.45 lbs, flat step, 168 ring gear)
  • 1 each Performance Pressure Plate
  • 1 each Performance Stage 4 Ceramic 6-Puck Sprung Disc (11-3/4" x 1-1/8" x 26 spline)
  • 1 each CSC Slave Cylinder Unit with Throw-out Bearing
  • 1 each Pilot Bearing
  • 1 each Alignment Tool
  • Clutch Installation Guide
